5935-01-231-3203
Tip Jack
5935012313203 012313203 441741 01-2540-1-02 416-0798-001
An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING. View more Tip Jack
November 2023
10
Marketplace 5935-01-231-3203
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-231-3203 4+ Documents (More...)
Request Quotation Subscribe to View Vendor Details... 441741 JACK,TIP 1 EA NS Request Quotation 441741
Every Day 5935-01-231-3203 RQST NE Updated Every Day 5935-01-231-3203 RQST Updated Every Day 5935-01
day Upgrade your Account Upgrade 5999-01-198-4683Electronic Shielding Gasket5999011984683 011984683 441741
-4683 DEMIL: A | DEMILI : 1 | CRITICALITY https https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-231-3203
FUEL CONTROL,MAIN,TURBINE ENGINE 1 EA NS Request Quotation 441741 FUEL CONTROL,MAIN,TURBINE ENGINE 1
Tip Jack 5935012313203 012313203,441741 Upgrade for $1 a day Upgrade your Account Upgrade 5935-
MICROCIRCUIT,DIGITAL 3 EA NS Request Quotation Subscribe to View Vendor Details... 441741 MICROCIRCUIT
,DIGITAL 1 EA NS Request Quotation 441741 MICROCIRCUIT,DIGITAL 1 EA NS Request Quotation Subscribe to
Restrictions 5935-01-231-3203
5935-01-231-3203 is a Tip Jack that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-231-3203
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-231-3203
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-01-231-3203
- Part Number
- Manufacturer
- Status
- 01-2540-1-02
- Manufacturer
- 18310 - Concord Electronics, Inc. (Active)
- Primary Buy
- Primary Buy
- 416-0798-001
- 94756 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- 441741
- 89536 - Fluke Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-231-3203
- Characteristic
- Specifications
- FIIG
- Specifications
- A03400
- Electrical Insulation Feature [AALV]
- Uninsulated
- Body Length [ADAQ]
- 0.500 Inches Nominal

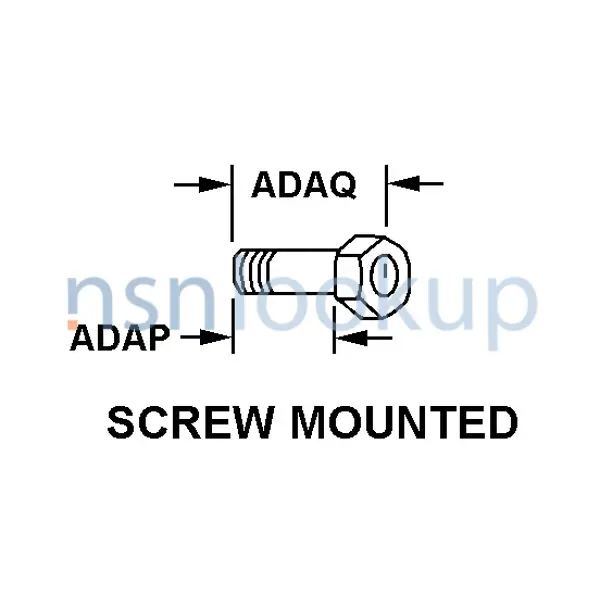

- Body Style [AAQL]
