5935-01-229-0340
Electrical Connector Shell
5935012290340 012290340 390HB001M1104A
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
January 2023
7
Marketplace 5935-01-229-0340
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-229-0340 1+ Documents (More...)
5935-01-229-0340 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-229-0340
Shell 5935012290340 RQST NE Updated Every Day 5935-01-229-0340 RQST Updated Every /fsg-59/fsc-5935/us
Restrictions 5935-01-229-0340
5935-01-229-0340 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-229-0340
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-229-0340
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5935-01-229-0340
- Part Number
- Manufacturer
- Status
- 390HB001M1104A
- Manufacturer
- 06324 - Glenair, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-229-0340
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Distance From Centerline To Cable End [AKFA]
- 2.529 Inches Maximum
- Distance From Centerline To Connector End [AKEZ]
- 0.520 Inches Maximum
- Body Diameter [ABPM]
- 0.906 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Cable Opening Diameter [AGTW]
- 0.188 Inches Minimum And 0.312 Inches Maximum
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Coupling

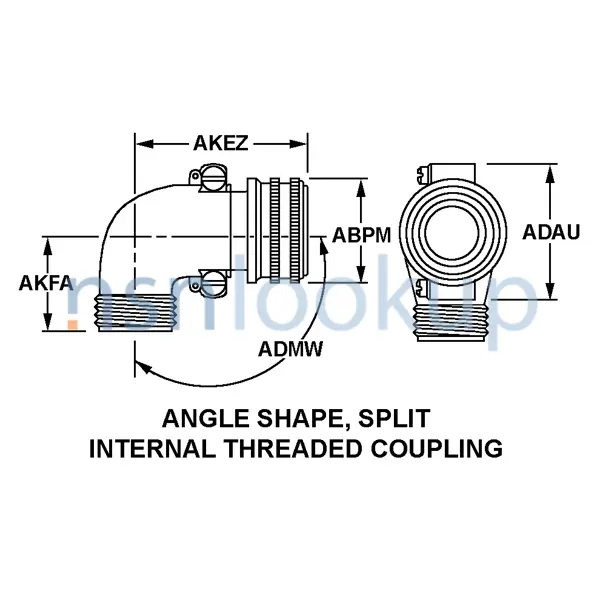

- Style Designator [STYL]
- Angle Shape, Split Internal Threaded Coupling
Similar Supply Items to 5935-01-229-0340
Freight Information 5935-01-229-0340
5935-01-229-0340 has freight characteristics managed by the United Kingdom (UK).. 5935-01-229-0340 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
