5935-01-216-6167
Plug-In Electronic Components Socket
5935012166167 012166167 353-0801 8059-2G7 M83502/1-014 MIL-S-83502/1C
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
11
Marketplace 5935-01-216-6167
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-01-216-6167 5+ Documents (More...)
(Identification) 1/3 NSN 5935-01-216-6167 (Identification) 2/3 NSN 5935-01-216-6167 (Identification
M83502/1-014 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 102 EA NS Request Quotation 8059-2G7 SOCKET,PLUG-IN
Linear Microcircuit 5962003530801 003530801 123530801 00-353-0801 Linear Microcircuit 5962003530801
353-0801 8059-2G7 M835021-014 SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation 8059-2G7
Every Day 5962-00-353-0801 RQST NE Related Documents 5962-00-353-0801 5+ Documents ( More... ) https
Day 5962-00-353-0801 RQST NE Related Documents 5962-00-353-0801 5+ Documents ( More... ) https Day 5962
8405-12-353-0801 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-84/fsc-8405/de 8405-12-353-0801
8405-12-353-0801 RQST NE Related Documents 8405-12-353-0801 5+ Documents ( More... ) https//www.nsnlookup.com
BUY NE FedMall Updated Every Day 4710-01-353-0801 RQST NE Updated Every Day 4710-01-353-0801 RQST Updated
Every Day 4710-01-353-0801 RQST NE Related Documents 4710-01-353-0801 3+ Documents ( More... ) https
Restrictions 5935-01-216-6167
5935-01-216-6167 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-216-6167
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-216-6167
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Jul 2004
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5935-01-216-6167
- Part Number
- Manufacturer
- Status
- 8059-2G7
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- M83502/1-014
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-83502/1C
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 353-0801
- 50621 - Wavetek (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-216-6167
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Circular .230 Inch
- Accommodated Contact Quantity [AFRL]
- 8
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Gold

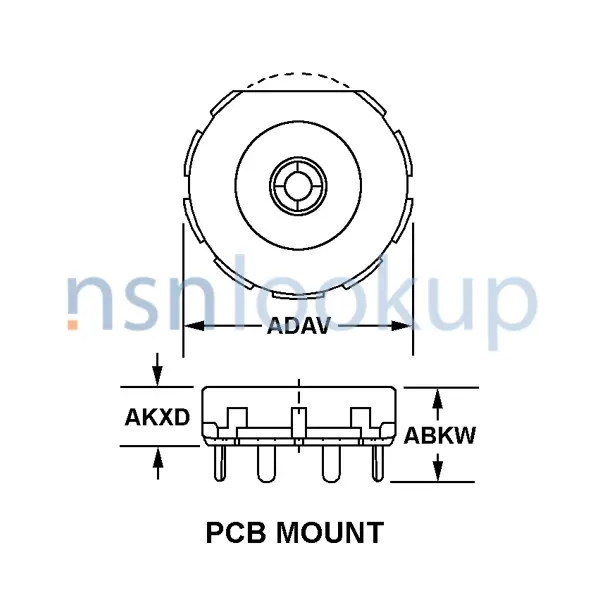

- Body Style [AAQL]
- Pcb Mount
- Overall Height [ABKW]
- 0.413 Inches Maximum
- Overall Diameter [ADAV]
- 0.400 Inches Maximum
- Projection Length Above Mounting Surface [AKXD]
- 0.183 Inches Maximum
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 8 Printed Circuit
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal

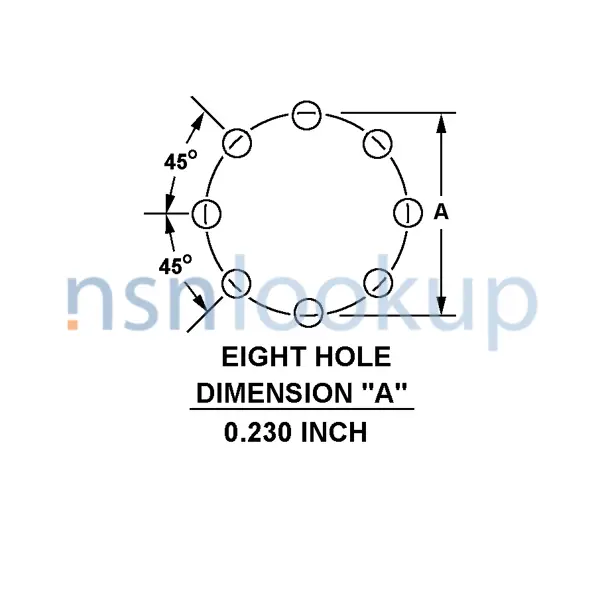

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Eight Hole Dimension "A" 0.230 Inch
- Polarization Type [AKWN]
- Contact Position
- Test Data Document [TEST]
- 81349-Mil-S-83502 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-83502/1 Government Specification
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
