5935-01-211-1554

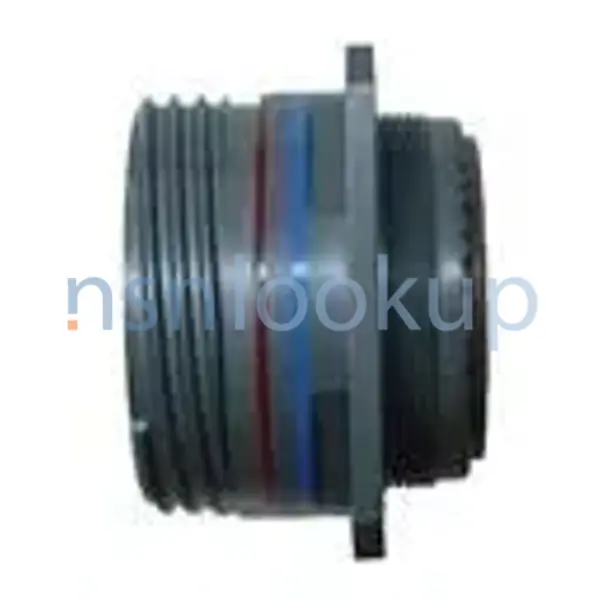

Electrical Receptacle Connector Body
5935012111554 012111554 MIL-DTL-38999/20 D38999/20FG35BB DOD-C-38999/20
The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector Body
May 2023
9
Marketplace 5935-01-211-1554
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-211-1554 5+ Documents (More...)
15 Minutes 5935-01-211-1554 BUY NE FedMall Updated Every Day 5935-01-211-1554 RQST NE Updated Every
Day 5935-01-211-1554 RQST Updated Every Day 5935-01-211-1554 RQST NE Related Documents 5935-01-211-1554
Electrical Receptacle Connector Body D38999/20FG35BB DOD-C-38999/20 The main or principal part
D38999/20FD35BB DOD-C-38999/20 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL
Electrical Receptacle Connector Body D38999/20FG35BB DOD-C-38999/20 The main or principal part
D38999/20FD35BB DOD-C-38999/20 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL
Restrictions 5935-01-211-1554
5935-01-211-1554 is a Electrical Receptacle Connector Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-211-1554
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-211-1554
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-211-1554
- Part Number
- Manufacturer
- Status
- D38999/20FG35BB
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-38999/20
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- DOD-C-38999/20
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-211-1554
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 20.1 Millimeters Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 31.7 Millimeters Nominal
- Connector Locking Method [AFRV]
- Externally Threaded Shell
- Contact Position Arrangement Style [AFQX]
- 20-35 Single Mating End
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 31.7 Millimeters Nominal
- Body Style [AAQL]
- Straight Shape, External Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 31.0 Millimeters And 1.375 Inches
- Insert Position In Deg [AFRP]
- 30.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment Document And Classification [CTBC]
- Mil-C-26074 Mil Spec Single Treatment Response
- Shell Surface Treatment [CSWM]
- Nickel
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 42.9 Millimeters Nominal
- Overall Length [ABHP]
- 31.5 Millimeters Maximum
- Overall Width [ABMK]
- 42.9 Millimeters Nominal
- Special Features [FEAT]
- Mounting Slot Width 3.2 Millimeters
- Thread Tolerance Class [CTTC]
- 6G External
- Threaded Device Type [AFQR]
- Back Shell And Coupling Facility
- Specification/Standard Data [ZZZK]
- 81349-Dod-C-38999/20 Government Specification
- Test Data Document [TEST]
- 81349-Dod-C-38999 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand And Right-Hand
- Thread Series Designator [THSD]
- Iso M And Special Acme
- Thread Pitch In Millimeters [CQQR]
- 1.00
- Thread Quantity Per Inch [CMLP]
- 10
