5935-01-205-1768
Plug-In Electronic Components Socket
5935012051768 012051768 707026 SS-109-1-18C
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
7
Marketplace 5935-01-205-1768
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-205-1768 5+ Documents (More...)
(Identification) 1/3 NSN 5935-01-205-1768 (Identification) 2/3 NSN 5935-01-205-1768 (Identification
/fsg-59/fsc-5935/us 5935-01-205-1768 Plug-In Electronic Components Socket,707026 707026SS-109-1-18C
Plug-In Electronic Components Socket,707026 011646682 Angle Bracket 5340144838755 144838755,707026
6682Test Set Subassembly6625011646682 011646682 707026 https//www.nsnlookup.com /fsg-59/fsc-5985/us
$1 a day Upgrade your Account Upgrade 5985-01-036-1856Coupler Subassembly5985010361856 010361856 707026
-00-122-0707 Preformed Packing Assortment 5330001220707 1768 Plug-In Electronic Components Socket,707026
Angle Bracket 5340144838755 144838755,707026 01-205-1768 Plug-In Electronic Components Socket,707026
6682Test Set Subassembly6625011646682 011646682 707026 https//www.nsnlookup.com /fsg-59/fsc-5985/us
Angle Bracket 5340144838755 144838755,707026 01-205-1768 Plug-In Electronic Components Socket,707026
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-205-1768 Plug-In Electronic Components Socket,707026
Restrictions 5935-01-205-1768
5935-01-205-1768 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-205-1768
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-205-1768
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Jul 2004
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2009
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-01-205-1768
- Part Number
- Manufacturer
- Status
- 707026
- Manufacturer
- 89536 - Fluke Corp (Active)
- Primary Buy
- Primary Buy
- SS-109-1-18C
- 30035 - Jolo Industries Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-205-1768
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

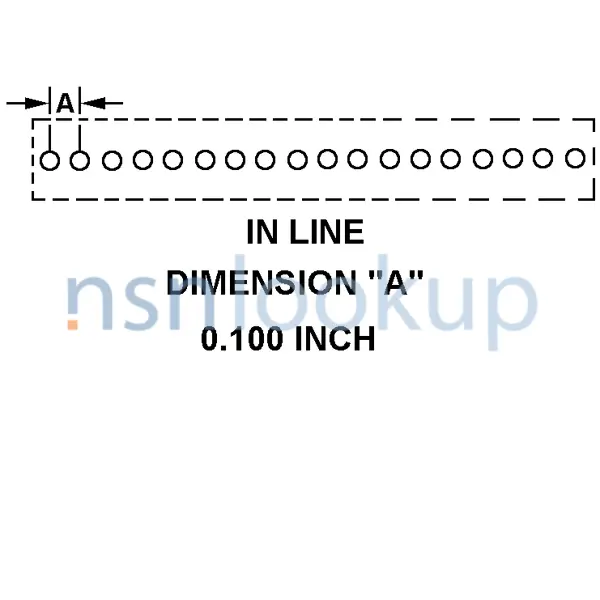

- Contact Position Arrangement Style [CRPY]
- In Line Dimension "A" 0.100 Inch
- Accommodated Contact Quantity [AFRL]
- 18
- Contact Material [AFRG]
- Phosphor Bronze
- Contact Surface Treatment [AFRH]
- Tin
- Body Style [AAQL]
- Top Mount
- Overall Length [ABHP]
- 1.810 Inches Nominal
- Terminal Length [ABJT]
- 0.175 Inches Nominal
- Overall Height [ABKW]
- 0.390 Inches Nominal
- Overall Width [ABMK]
- 0.100 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 18 Printed Circuit
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal

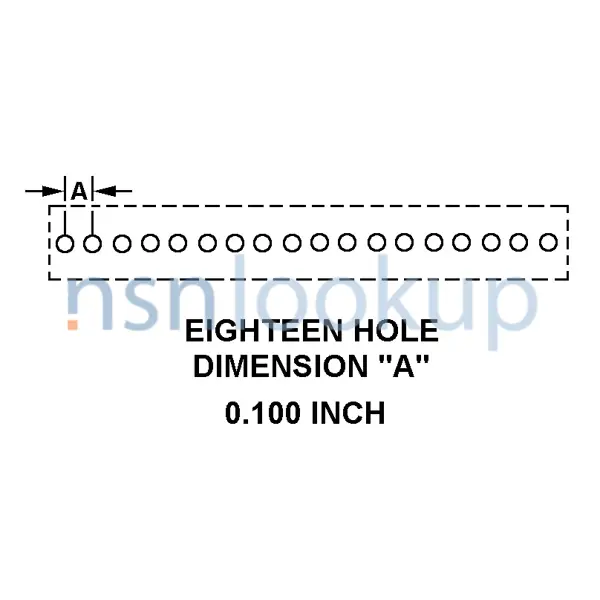

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Eighteen Hole
- End Item Identification [AGAV]
- 6625-01-079-1762
