5935-01-201-8094

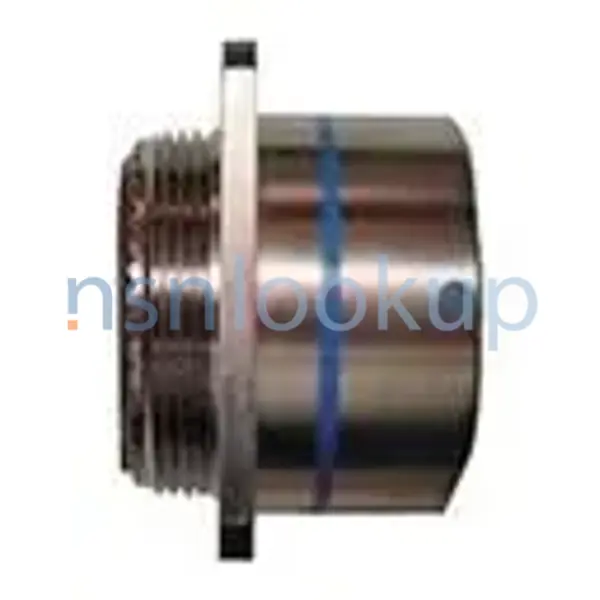

Electrical Receptacle Connector Body
5935012018094 012018094 MIL-DTL-38999 MS27656T15B5B MIL-C-38999
The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector Body
May 2023
6
Marketplace 5935-01-201-8094
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-01-201-8094 5+ Documents (More...)
Photo 1/2 NSN 5935-01-201-8094 (Identification) 2/2 - - 1.
Updated Every Day 5935-01-201-8094 RQST NE Updated Every Day 5935-01-201-8094 RQST Updated Every Day
MIL-C-38999 CONNECTOR BODY,PLUG,ELECTRICAL 9 EA NS Request Quotation MIL_C_38999 CONNECTOR BODY,PLUG,
MIL-C-38999 CONNECTOR BODY,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details
Restrictions 5935-01-201-8094
5935-01-201-8094 is a Electrical Receptacle Connector Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-201-8094
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-201-8094
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5935-01-201-8094
- Part Number
- Manufacturer
- Status
- MS27656T15B5B
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-38999
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-C-38999
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-201-8094
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.820 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 0.969 Inches Nominal
- Connector Locking Method [AFRV]
- Bayonet Pin
- Contact Position Arrangement Style [AFQX]
- 15-5 Single Mating End
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 0.969 Inches Nominal
- Environmental Protection [ADZC]
- Moisture Proof And Salt Water Resistant And Vibration Proof
- Body Style [AAQL]
- Straight Shape, External Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.219 Inches
- Nominal Thread Size [CQJX]
- 0.812 Inches
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment Document And Classification [CTBC]
- Qq-P-416 Fed Spec Single Treatment Response
- Shell Surface Treatment [CSWM]
- Cadmium
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 1.219 Inches Nominal
- Overall Length [ABHP]
- 1.294 Inches Maximum
- Overall Width [ABMK]
- 1.219 Inches Nominal
- Threaded Device Type [AFQR]
- Back Shell
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.128 Inches Nominal
- Specification/Standard Data [ZZZK]
- 96906-Ms27656 Government Standard
- Test Data Document [TEST]
- 81349-Mil-C-38999 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unef
- Thread Quantity Per Inch [CMLP]
- 20
