5935-01-192-0117
Electrical Connector Guide
5935011920117 011920117 DL3-POL POST 584R721H07
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
November 2023
8
Marketplace 5935-01-192-0117
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-192-0117 1+ Documents (More...)
United States (US) 4. 5935-01-192-0117 Marketplace Restrictions Approved Sources Datasheet Management
Every Day 5935-01-192-0117 RQST Updated Every Day 5935-01-192-0117 RQST NE Related Documents 5935-01
Restrictions 5935-01-192-0117
5935-01-192-0117 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-192-0117
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-192-0117
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
Approved Sources 5935-01-192-0117
- Part Number
- Manufacturer
- Status
- DL3-POL POST
- Manufacturer
- 71468 - Itt Cannon Llc (Active)
- Primary Buy
- Primary Buy
- 584R721H07
- 97942 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5935-01-192-0117
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Hole
- Nominal Thread Length [AKMG]
- 0.200 Inches
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Overall Length [ABHP]
- 0.340 Inches Minimum And 0.355 Inches Maximum
- Special Features [FEAT]
- Material And Finish Is To Be Non-Magnetic
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Series Designator [THSD]
- Unc
- Width Across Flats [ASDB]
- 0.247 Inches Minimum And 0.252 Inches Maximum

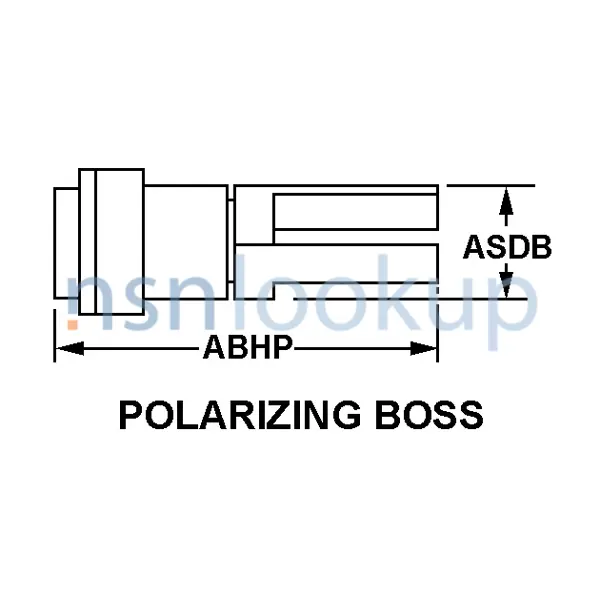

- Style Designator [STYL]
- Polarizing Boss
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5935-01-192-0117
DLA Procurement Analysis 5935-01-192-0117
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-01-192-0117
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5935-01-192-0117
Freight Information 5935-01-192-0117
5935-01-192-0117 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-192-0117 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-192-0117 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-192-0117 is not classified as a special type of cargo when transported by water. 5935-01-192-0117 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-192-0117
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5935-01-192-0117 1 Records
Contracting Technical Data File (CTDF) 5935-01-192-0117 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
