5935-01-186-2421
Electrical Connector Guide
5935011862421 011862421 ES7070-03 WTAJL Z7052-11
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
January 2023
7
Marketplace 5935-01-186-2421
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-186-2421 3+ Documents (More...)
Z7052-11 GUIDE,ELECTRICAL CONNECTOR 52 EA NS Request Quotation Updated Every Day 5935-01-186-2421 RQST
NE Updated Every Day 5935-01-186-2421 RQST Updated Every Day 5935-01-186-2421 RQST NE Related Documents
Electrical Connector Guide 5935011862421 Account Upgrade 5935-01-186-2421Electrical Connector Guide5935011862421
011862421 ES7070-03 WTAJL Z7052 Z7052-11 GUIDE,ELECTRICAL CONNECTOR 52 EA NS Request Quotation Updated
Electrical Connector Guide 5935011862421 5340-14-535-4398 Antipilferage Seal 5340145354398 145354398
Restrictions 5935-01-186-2421
5935-01-186-2421 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-186-2421
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-186-2421
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 1995
Approved Sources 5935-01-186-2421
- Part Number
- Manufacturer
- Status
- ES7070-03
- Manufacturer
- 20418 - Drs Sustainment Systems, Inc. (Replaced)
- Source Control
- Source Control
- WTAJL
- 10400 - Airborn Interconnect Inc (Active)
- Primary Buy
- Primary Buy
- Z7052-11
- 82647 - Sensata Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-186-2421
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- End Item Identification [AGAV]
- An/Asg-21
- Material [MATT]
- Steel Corrosion Resisting
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Stud
- Nominal Thread Size [CQJX]
- 0.036 Inches
- Overall Length [ABHP]
- 0.709 Inches Nominal
- Width Across Flats [ASDB]
- 0.125 Inches Nominal

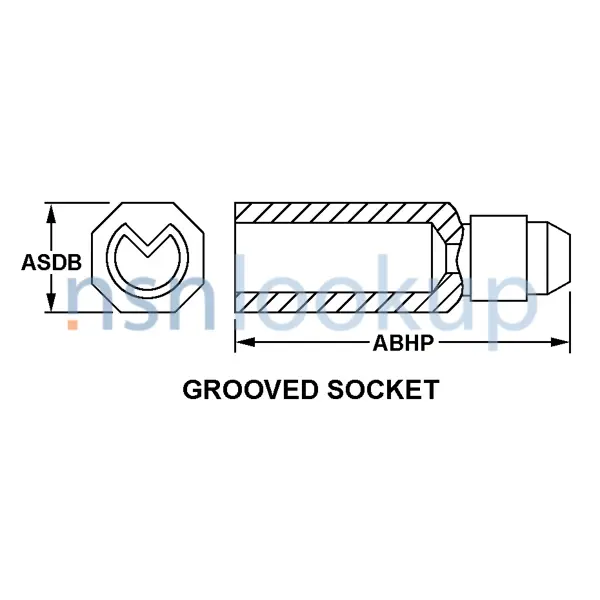

- Style Designator [STYL]
