5935-01-182-2471

Electrical Receptacle Connector

5935011822471 011822471 SAE-AS50151 MS3102R14-2P 9442A14S-2P 97-3102A14S2P440 195010 PIECE 21 MS102R-14S-2P MS3102R14S-2P MS3102A14S-2PN MS3452W14S-2P M83723/22R1502N 8MS3102R14S2P M72302G14S2P 10-214214-02P 1251-0110 MILC83723-22 MS3102R14S2P MIL-C-5015

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector

Managed by United States

NSN Created on 22 Jun 1984

Data Last Changed
August 2025

NATO Update Count
74

NATO Data Quality

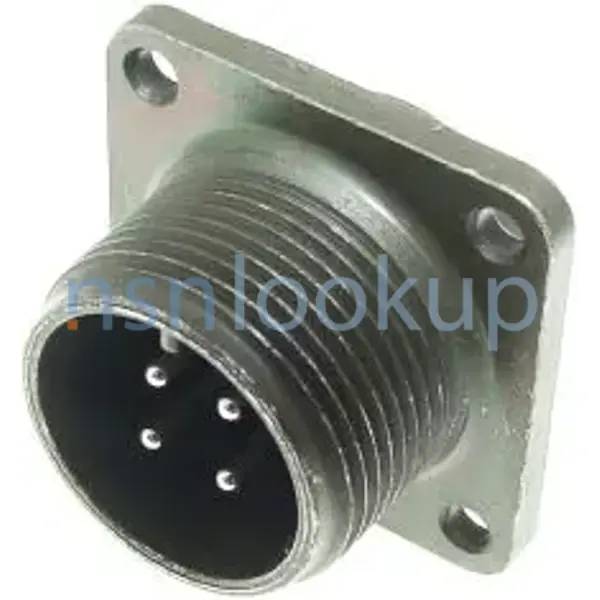

5935-01-182-2471 CONNECTOR,RECEPTACLE,ELECTRICAL 5935011822471 011822471 1/2 — 5935-01-182-2471 Photo 1/2

AAQL Style 1G for 5935-01-182-2471 2/2 — NSN 5935-01-182-2471 (Identification) 2/2

Marketplace 5935-01-182-2471

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS3102R14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

MILC5015 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

10-214214-02P CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3102R14S2P CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MIL-C-83723/22 CONNECTOR,RECEPTACLE,ELECTRICAL 64 EA NS

MS3102R14S2P CONNECTOR,RECEPTACLE,ELECTRICAL 5 EA NS

MIL-C-5015 CONNECTOR,RECEPTACLE,ELECTRICAL 117 EA NS

Subscribe to View Vendor Details...

MS3102R14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS

Subscribe to View Vendor Details...

MS3102R14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

MS3452W14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MILC5015 CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS

Subscribe to View Vendor Details...

MS3452W14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 4 EA NS

Subscribe to View Vendor Details...

MS3102R14-2P CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS

MS3102R14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 60 EA NS

MS3452W14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MS3102R14S-2P CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

MILC5015 CONNECTOR,RECEPTACLE,ELECTRICAL 42 EA NS

MIL-C-5015 CONNECTOR,RECEPTACLE,ELECTRICAL 23 EA NS

Updated Every Day

5935-01-182-2471 RQST NE

Updated Every Day

5935-01-182-2471 RQST

Updated Every Day

5935-01-182-2471 RQST NE

Restrictions 5935-01-182-2471

5935-01-182-2471 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.

Import and Export 5935-01-182-2471

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5935-01-182-2471

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: AZCTCL; AMC 1 AMSC T IMC Z IMCACTY CD

US Coast Guard (C911)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C007; AMC 1 AMSC T

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC49)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC13; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ND
Supplementary Collaborators:: GTKEJSJBHD; AMC 1 AMSC T IMC Z IMCACTY HD

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S007; AMC 1 AMSC T IMC Z IMCACTY XN

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 May 2004

Brazil (YA01)
Effective Date:: 1 Jul 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Sep 1993

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Nov 1998

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Jul 1997

Italy (ZR01)
Effective Date:: 1 Jul 1997

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Mar 2008

Approved Sources 5935-01-182-2471

Part Number
Manufacturer
Status
SAE-AS50151: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
MS3452W14S-2P: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS3452W14S-2P: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS3102R14S-2P: 0BW78 - J - T E C H (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS3102R14S2P: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MIL-C-5015: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS3102R14-2P: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
9442A14S-2P: 14283 - Amphenol Optimize Manufacturing Co. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
97-3102A14S2P440: 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6
195010 PIECE 21: 51819 - Ssi Technology Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS102R-14S-2P: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3102R14S-2P: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3102A14S-2PN: 94481 - Cannon Instrument Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
M83723/22R1502N: 81349 - Military Specifications (Active); Transferred; RNCC E RNVC 8 DAC 3
8MS3102R14S2P: 17146 - Astromatics Inc (Obsolete); Transferred; RNCC E RNVC 8 DAC 6
M72302G14S2P: 14283 - Amphenol Optimize Manufacturing Co. (Active); Transferred; RNCC E RNVC 8 DAC 6
10-214214-02P: 77820 - Amphenol Corp (Active); Transferred; RNCC E RNVC 8 DAC E
MS3102R14S-2P: 77820 - Amphenol Corp (Active); Transferred; RNCC E RNVC 8 DAC E
1251-0110: 1LQK8 - Keysight Technologies, Inc. (Replaced); Transferred; RNCC E RNVC 8 DAC 5
MILC83723-22: 81349 - Military Specifications (Active); Transferred; RNCC E RNVC 8 DAC 3
MS3102R14S-2P: 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced); Transferred; RNCC E RNVC 8 DAC E

Datasheet 5935-01-182-2471

Characteristic
Specifications
FIIG: A039B0
Distance From Mounting Shoulder To Front Face [AFQK]: 0.562 Inches Nominal
End Item Identification [AGAV]: 6940K4309791a
Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]: 0.906 Inches Nominal
Connector Locking Method [AFRV]: Externally Threaded Shell
Contact Material [CQTZ]: Copper Alloy Single Mating End Single Contact Grouping
Contact Removability [AFQZ]: Removable Single Mating End Single Contact Grouping
Contact Position Arrangement Style [AFQX]: 14S-2 Single Mating End
Contact Surface Treatment Document And Classification [CRBJ]: Mil-G-45204 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
Contact Surface Treatment [CQYH]: Gold Single Mating End Single Contact Grouping
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]: 0.906 Inches Nominal
Environmental Protection [ADZC]: Moisture Proof And Salt Water Resistant And Vibration Proof
Body Style [AAQL]: Straight Shape, External Coupling
Mating End Quantity [AFQW]: 1
Nominal Thread Length [AKMG]: 0.375 Inches
Nominal Thread Size [CQJX]: 0.875 Inches
Included Contact Type [CXCL]: Round Pin Single Mating End Single Contact Grouping
Included Contact Quantity [CXCG]: 4 Single Mating End Single Contact Grouping
Insert Material [CQZG]: Rubber Synthetic Single Mating End
Insert Position In Deg [AFRP]: 0.0
Polarization Method [AFRN]: Keyway Or Multiple Keyway
Precious Material And Location [PMLC]: Contact Surfaces Gold
Precious Material [PRMT]: Gold
Precious Material And Weight [PMWT]: 0.020 Gold Grains, Troy
Shell Material [CSPT]: Aluminum Alloy
Shell Surface Treatment Document And Classification [CTBC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
Shell Surface Treatment [CSWM]: Cadmium
Shell Type [AFRT]: Solid
Overall Height [ABKW]: 1.188 Inches Nominal
Overall Length [ABHP]: 1.662 Inches Maximum
Overall Width [ABMK]: 1.188 Inches Nominal
Threaded Device Type [AFQR]: Coupling Facility
Unthreaded Mounting Hole Diameter [AEBV]: 0.120 Inches Nominal
Specification/Standard Data [ZZZK]: 96906-Ms3452 Government Standard
Terminal Location [CQTM]: Back Single Mating End Single Contact Grouping
Terminal Type [CSCF]: Crimp Single Mating End Single Contact Grouping
Test Data Document [TEST]: 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Series Designator [THSD]: Unef
Thread Quantity Per Inch [CMLP]: 20

Weapon Systems (WSDC) 5935-01-182-2471

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5935-01-182-2471

Last Stock Position:: 308 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5935-01-182-2471

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jul 2023: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2022: US Coast Guard (GP); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5935-00-295-3085

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 5935-01-182-2471

Freight Information 5935-01-182-2471

5935-01-182-2471 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-182-2471 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-182-2471 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-182-2471 is not classified as a special type of cargo when transported by water. 5935-01-182-2471 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5935-01-182-2471

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; No Requirement; Not Applicable; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5935-01-182-2471 3 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M916M0522: 10 Nov 2015; Subscribe; 488; Subscribe; Subscribe
SPE7M315M3128: 09 Jul 2015; Subscribe; 139; Subscribe; Subscribe
SPE7M115M4085: 04 Mar 2015; Subscribe; 147; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5935-01-182-2471 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5935-01-182-2471

Related Documents 5935-01-182-2471 5+ Documents (More...)

Restrictions 5935-01-182-2471

Import and Export 5935-01-182-2471

End Users 5935-01-182-2471

Approved Sources 5935-01-182-2471

Datasheet 5935-01-182-2471

Weapon Systems (WSDC) 5935-01-182-2471

DLA Procurement Analysis 5935-01-182-2471

Management Data 5935-01-182-2471

Army

Navy

Marine Corps

Similar Supply Items to 5935-01-182-2471

Freight Information 5935-01-182-2471

Packaging Data 5935-01-182-2471

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5935-01-182-2471 3 Records

Contracting Technical Data File (CTDF) 5935-01-182-2471 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
