5935-01-157-2722
Plug-In Electronic Components Socket
5935011572722 011572722 61690-112 8026-1G1
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
9
Marketplace 5935-01-157-2722
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-157-2722 2+ Documents (More...)
(Identification) 1/3 NSN 5935-01-157-2722 (Identification) 2/3 NSN 5935-01-157-2722 (Identification
RQST NE Updated Every Day 5935-01-157-2722 RQST Updated Every Day 5935-01-157-2722 RQST NE Related Documents
SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request Quotation Subscribe to View Vendor Details... 8026-1G1
SOCKET,PLUG-IN ELECTRONIC COMPONENTS 84 EA NS Request Quotation Subscribe to View Vendor Details... 8026-1G1
Restrictions 5935-01-157-2722
5935-01-157-2722 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-157-2722
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-157-2722
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHXHD
- Poland (WP01)
- Effective Date:
- 1 Jan 2006
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Australia (ZA01)
- Effective Date:
- 1 Jun 2001
- Canada (ZC01)
- Effective Date:
- 1 Jun 2001
- Germany (ZG01)
- Effective Date:
- 1 Jun 2001
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2001
Approved Sources 5935-01-157-2722
- Part Number
- Manufacturer
- Status
- 61690-112
- Manufacturer
- 12763 - Dynalec Corporation (Active)
- Primary Buy
- Primary Buy
- 8026-1G1
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-157-2722
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.780 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.420 Inches Nominal
- Body Style [AAQL]

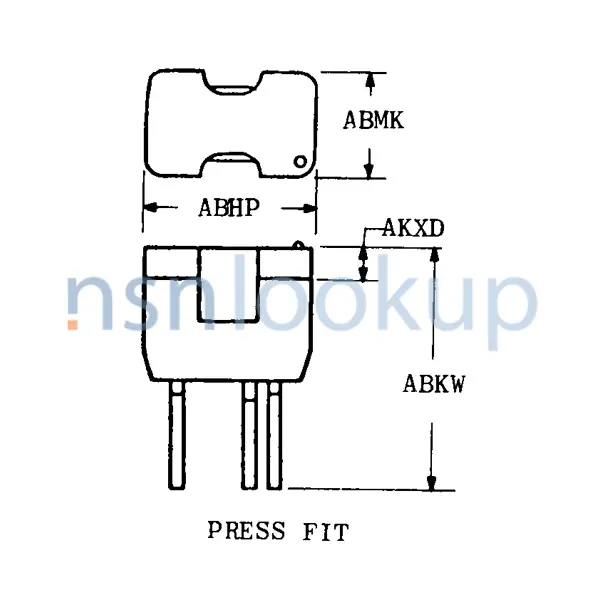

- Press Fit
