5935-01-131-1708
Electrical Receptacle Connector
5935011311708 011311708 HE902-35-70S10 2083803-1
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
January 2023
8
Marketplace 5935-01-131-1708
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-131-1708 2+ Documents (More...)
RQST NE Updated Every Day 5935-01-131-1708 RQST Updated Every Day 5935-01-131-1708 RQST NE Related Documents
5935-01-131-1708 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-131-1708
Electrical Receptacle Connector 011311708 your Account Upgrade 5935-01-131-1708Electrical Receptacle
Connector5935011311708 011311708 HE902-35-70S10 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-131-1708
Restrictions 5935-01-131-1708
5935-01-131-1708 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-131-1708
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-131-1708
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-131-1708
- Part Number
- Manufacturer
- Status
- HE902-35-70S10
- Manufacturer
- 28198 - Positronic Industries Inc (Active)
- Primary Buy
- Primary Buy
- 2083803-1
- 96214 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-131-1708
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 3.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping And Copper Single Mating End Single Contact Grouping
- Distance Between Mounting Facility Centers [AEJN]
- 3.596 Inches Nominal

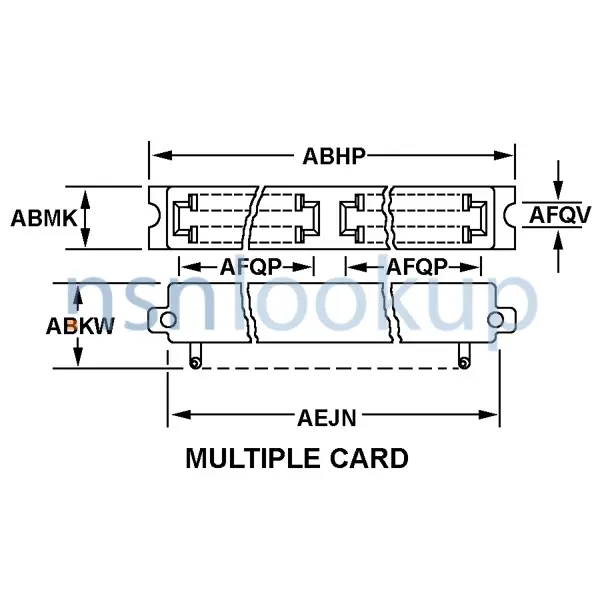

- Body Style [AAQL]
- Multiple Card
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 70 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Socket Single Mating End Single Contact Grouping
- Overall Length [ABHP]
- 4.308 Inches Nominal
- Terminal Location [CQTM]
- Side Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
Similar Supply Items to 5935-01-131-1708
Freight Information 5935-01-131-1708
5935-01-131-1708 has freight characteristics managed by Germany.. 5935-01-131-1708 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
