5935-01-120-9101
Plug-In Electronic Components Socket
5935011209101 011209101 ICK-120-G
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
3
Marketplace 5935-01-120-9101
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-120-9101 2+ Documents (More...)
RQST NE Updated Every Day 5935-01-120-9101 RQST Updated Every Day 5935-01-120-9101 RQST NE Related
Documents 5935-01-120-9101 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-158-3411 Electrical Contact Assembly 5999011583411 ICK-120-G
www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-158-3411 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-120-9101
Restrictions 5935-01-120-9101
5935-01-120-9101 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-120-9101
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-120-9101
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5935-01-120-9101
- Part Number
- Manufacturer
- Status
- ICK-120-G
- Manufacturer
- 55322 - Samtec Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-120-9101
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

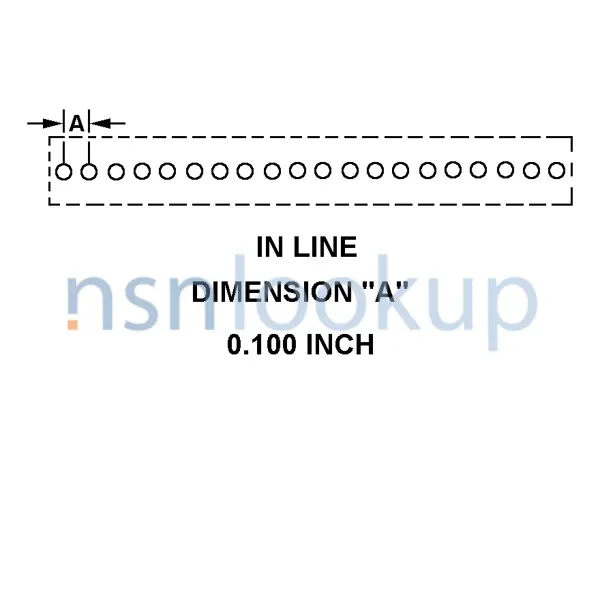

- Contact Position Arrangement Style [CRPY]
- In Line
- Accommodated Contact Quantity [AFRL]
- 20
- Contact Material [AFRG]
- Any Acceptable
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Mount
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Terminal Length [ABJT]
- 0.135 Inches Nominal
- Overall Height [ABKW]
- 0.300 Inches Nominal
- Overall Width [ABMK]
- 0.118 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 20 Printed Circuit
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal
- Printed Circuit Board Hole Arrangement Style [AKWJ]

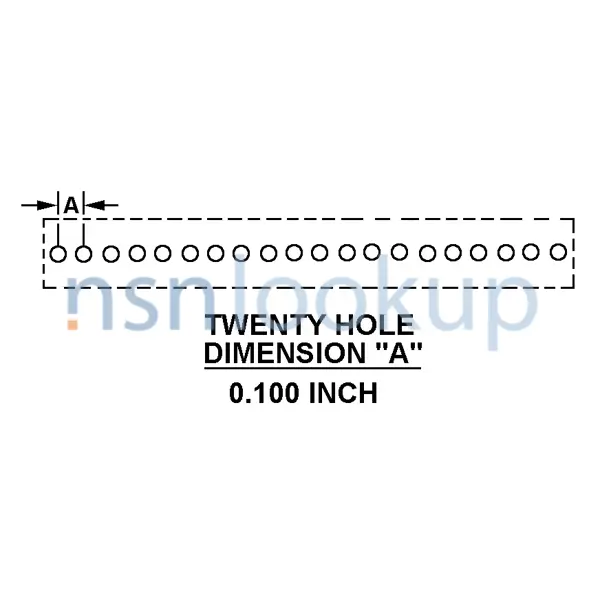

- Twenty Hole Dimension "A" 0.100 Inch
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.020 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
