5935-01-110-2459
Plug-In Electronic Components Socket
5935011102459 011102459 6348-428-5
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
6
Marketplace 5935-01-110-2459
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-110-2459 1+ Documents (More...)
NSN 5935-01-110-2459 (Identification NSN 5935-01-110-2459 (Identification NSN 5935-01-110-2459 (Identification
NSN 5935-01-110-2459 (Identification NSN 5935-01-110-2459 (Identification 5935-01-110-2459 DEMIL: A
Restrictions 5935-01-110-2459
5935-01-110-2459 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-110-2459
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-110-2459
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-110-2459
- Part Number
- Manufacturer
- Status
- 6348-428-5
- Manufacturer
- 61638 - Advanced Interconnections (Active)
- Primary Buy
- Primary Buy
- 6348-428-5
- 17117 - Electronic Molding Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-110-2459
- Characteristic
- Specifications
- FIIG
- Specifications

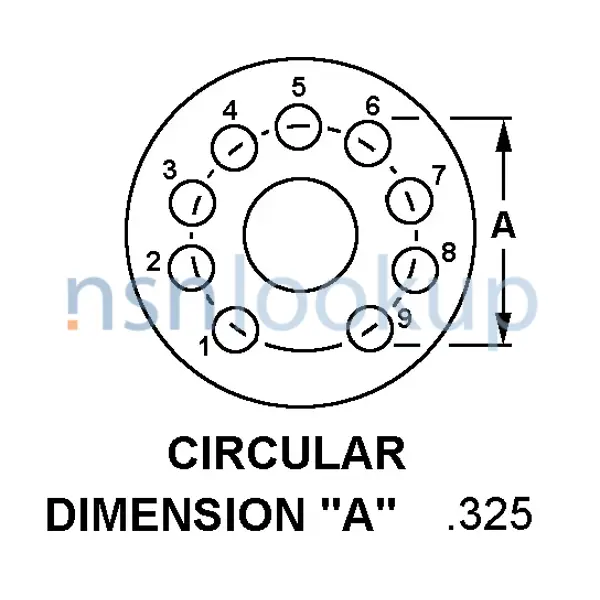

- A02300
- Accommodated Contact Quantity [AFRL]
- 9
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Bottom Mount W/Molded Saddle
- Contact Material [AFRG]
- Copper Alloy
- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold And Nickel
- Distance Between Mounting Facility Centers [AEJN]
- 0.960 Inches Nominal
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Threaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Length [AKMG]
- 0.500 Inches
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Projection Length Above Mounting Surface [AKXD]
- 0.520 Nominal Inches
- Overall Height [ABKW]
- 0.625 Inches Nominal
- Overall Length [ABHP]
- 1.242 Inches Minimum And 1.262 Inches Maximum
- Overall Width [ABMK]
- 0.690 Inches Minimum And 0.710 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 9 Pin
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
