5935-01-106-6072

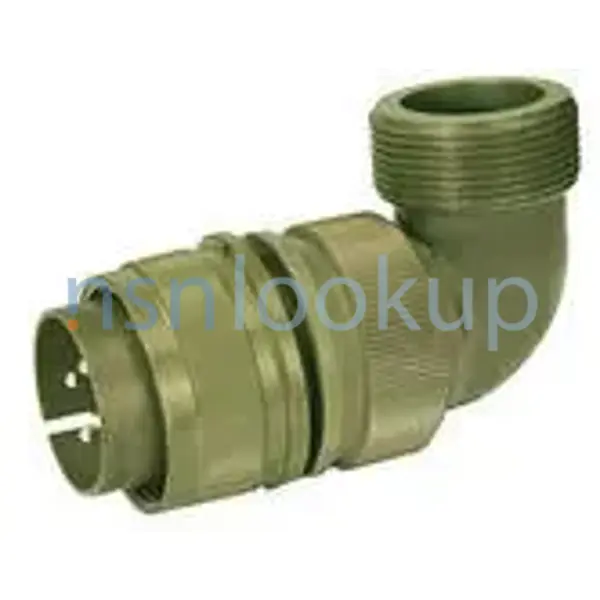

Electrical Plug Connector
5935011066072 011066072 SAE-AS50151 MS3108E18-12P MS3108R18-12P MS3108R1812P MIL-C-5015
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
Managed by United States
NSN Created on 22 Jan 1981
Data Last Changed
November 2023
November 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 5935-01-106-6072
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MILC/5015 CONNECTOR,PLUG,ELECTRICAL 1 EA NS
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 30 EA NS
MILC5015 CONNECTOR,PLUG,ELECTRICAL 73 EA NS
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL RQST NS
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL RQST NS
SAEAS50151 CONNECTOR,PLUG,ELECTRICAL RQST NS
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL 14 EA NS
MS3108R18-12P CONNECTOR,PLUG,ELECTRICAL 14 EA NS
MILC5015 CONNECTOR,PLUG,ELECTRICAL 1 EA NS
Updated Every Day 5935-01-106-6072 RQST NE
Updated Every Day 5935-01-106-6072 RQST
Updated Every Day 5935-01-106-6072 RQST NE
Related Documents 5935-01-106-6072 5+ Documents (More...)
SAE-AS50151 MS3108E18-12P MS3108R18-12P MS3108R1812P MIL-C-5015 An electrical fitting with electrical
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL 14 EA NS Request Quotation MS3108R18-12P CONNECTOR,PLUG,ELECTRICAL
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL
MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL 14 EA NS Request Quotation MS3108R18-12P CONNECTOR,PLUG,ELECTRICAL
MILC/5015 CONNECTOR,PLUG,ELECTRICAL 1 EA NS Request Quotation MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 30
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details...
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details...
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation MS3108E18-12P CONNECTOR,PLUG,ELECTRICAL
//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-106-6072 Electrical Plug Connector 5935011066072, MS3108E18
,ELECTRICAL MIL/C/5015 ,ELECTRICAL MIL/C/5015 MIL https MIL MIL-C- https/ CONNECTOR,PLUG,ELECTRICAL MIL
//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-106-6072 Electrical Plug Connector 5935011066072, MS3108E18
,ELECTRICAL MIL/C/5015 ,ELECTRICAL MIL/C/5015 MIL https MIL MIL-C- https/ CONNECTOR,PLUG,ELECTRICAL MIL
MS3402D22-22BX MIL-C-5015 SAE AS50151 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL
MIL MIL-C-5015 CONNECTOR MIL MIL-C-5015 CONNECTOR -12S SAE AS50151 An electrical Electrical Receptacle
MIL/C/5015 MIL https MIL MIL-C-5015 MIL https MIL MIL-C MIL MIL-C-5015 CONNECTOR ,ELECTRICAL MIL/C/5015
MIL MIL-C-5015 CONNECTOR MIL MIL-C-5015 CONNECTOR -12S SAE AS50151 An electrical Electrical Receptacle
MIL/C/5015 MIL https MIL MIL-C-5015 MIL https MIL MIL-C MIL MIL-C-5015 CONNECTOR ,ELECTRICAL MIL/C/5015
MIL CONNECTOR MIL/C/5015 ,ELECTRICAL MIL/C/5015 MIL https MIL MIL-C-5015MIL MIL/C/5015 MIL https
MIL/C/5015 ELECTRICAL MIL/C/5015 ,ELECTRICAL MIL/C/5015 MIL https ,ELECTRICAL ,ELECTRICAL MIL/C/5015
CONNECTOR MIL MIL-C-5015 CONNECTOR -12S SAE AS50151 An electrical Electrical Receptacle MIL/C/5015
MIL/C/5015 ELECTRICAL MIL/C/5015 ,ELECTRICAL MIL/C/5015 MIL https ,ELECTRICAL ,ELECTRICAL MIL/C/5015
CONNECTOR MIL MIL-C-5015 CONNECTOR -12S SAE AS50151 An electrical Electrical Receptacle MIL/C/5015
Restrictions 5935-01-106-6072
5935-01-106-6072 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-106-6072
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-106-6072
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-106-6072
- Part Number
- Manufacturer
- Status
- SAE-AS50151
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS3108R18-12P
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS3108R1812P
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS3108R18-12P
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-C-5015
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS3108E18-12P
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-106-6072
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Centerline To Connector End [AKEZ]
- 2.844 Inches Maximum
- Distance From Centerline To Cable End [AKFA]
- 1.781 Inches Maximum
- Body Angle In Deg [ADMW]
- 90.0
- Connector Locking Method [AFRV]
- Internally Threaded Coupling Ring
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 500.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 18-12 Single Mating End
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 22.0 Single Mating End Single Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 700.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping And Silver Single Mating End Single Contact Grouping
- Environmental Protection [ADZC]
- Moisture Resistant And Vibration Resistant And Salt Water Resistant
- Body Style [AAQL]
- Angle Shape, W/O Cable Clamp
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.625 Inches And 0.719 Inches
- Nominal Thread Size [CQJX]
- 1.000 Inches And 1.125 Inches
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Included Contact Quantity [CXCG]
- 6 Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Rubber Single Mating End
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment Document And Classification [CTBC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
- Shell Surface Treatment [CSWM]
- Cadmium
- Shell Type [AFRT]
- Solid
- Overall Diameter [ADAV]
- 1.344 Inches Maximum
- Threaded Device Type [AFQR]
- Back Shell And Coupling Facility
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A And 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unef And Unef
