5935-01-103-5782
Electrical Receptacle Connector
5935011035782 011035782 MIL-C-5015 MS3450L22-2P MS3100A22-2P
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
26
Marketplace 5935-01-103-5782
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-01-103-5782 5+ Documents (More...)
MS3100A22-2P CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS Request Quotation MIL-C-5015 CONNECTOR,RECEPTACLE
MS3450L22-2P CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS Request Quotation MS3100A22-2P CONNECTOR,RECEPTACLE
/fsg-59/fsc-5999/fr

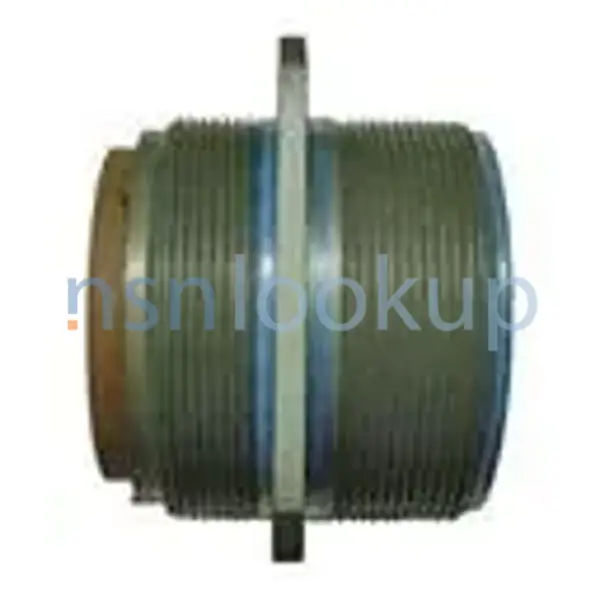

Electrical Receptacle Connector 011035782 Photo 1/2 NSN 5935-01-103-5782 (Identification) 2/2 -
RQST NE Updated Every Day 5935-01-103-5782 RQST Updated Every Day 5935-01-103-5782 RQST NE Related Documents
Restrictions 5935-01-103-5782
5935-01-103-5782 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-103-5782
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-103-5782
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2003
Approved Sources 5935-01-103-5782
- Part Number
- Manufacturer
- Status
- MS3450L22-2P
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-5015
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS3100A22-2P
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-103-5782
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.750 Inches Minimum And 0.781 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.250 Inches Nominal
- Connector Locking Method [AFRV]
- Externally Threaded Shell
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 900.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 22-2 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 73.0 Single Mating End Single Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 1250.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.250 Inches Nominal
- Environmental Protection [ADZC]
- Moisture Proof And Salt Water Resistant And Vibration Proof
- Body Style [AAQL]
- Straight Shape, External Coupling W/Backshell
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.290 Inches And 0.625 Inches
- Nominal Thread Size [CQJX]
- 1.312 Inches And 1.375 Inches
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Included Contact Quantity [CXCG]
- 3 Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Silicon Single Mating End
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.015 Gold Grains, Troy
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment [CSWM]
- Nickel
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 1.625 Inches Nominal
- Overall Length [ABHP]
- 2.500 Inches Maximum
- Overall Width [ABMK]
- 1.625 Inches Nominal
- Threaded Device Type [AFQR]
- Back Shell And Coupling Facility
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.115 Inches Minimum And 0.130 Inches Maximum
- Specification/Standard Data [ZZZK]
- 96906-Ms3450 Government Standard
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unef
- Thread Quantity Per Inch [CMLP]
- 18
DLA Procurement Analysis 5935-01-103-5782
Management Data 5935-01-103-5782
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2007
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5935-01-026-5889
- Z
Similar Supply Items to 5935-01-103-5782
Freight Information 5935-01-103-5782
5935-01-103-5782 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-103-5782 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-103-5782 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-103-5782 is not classified as a special type of cargo when transported by water. 5935-01-103-5782 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
