5935-01-087-8811
Plug-In Electronic Components Socket
5935010878811 010878811 23047-0002 23047-2
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
June 2023
5
Marketplace 5935-01-087-8811
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-087-8811 5+ Documents (More...)
(Identification) 1/3 NSN 5935-01-087-8811 (Identification) 2/3 NSN 5935-01-087-8811 (Identification
RQST NE Updated Every Day 5935-01-087-8811 RQST Updated Every Day 5935-01-087-8811 RQST NE Related Documents
Plug-In Electronic Components Socket -0002 23047-2 An item designed to electrically connect and
mechanically position the base of an item https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-087-8811
Plug-In Electronic Components Socket www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-087-8811 Plug-In
Electronic Components Socket 23047-000223047 Day 5935-01-087-8811 RQST NE Related Documents https//www.nsnlookup.com
Plug-In Electronic Components Socket -0002 23047-2 An item designed to electrically connect and
mechanically position the base of an item https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-087-8811
Plug-In Electronic Components Socket -0002 23047-2 An item designed to electrically connect and
mechanically position the base of an item https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-087-8811
Restrictions 5935-01-087-8811
5935-01-087-8811 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-087-8811
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-087-8811
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
Approved Sources 5935-01-087-8811
- Part Number
- Manufacturer
- Status
- 23047-2
- Manufacturer
- 14892 - Bendix Corp The Brake And Steering (Obsolete)
- Original Design
- Original Design
- 23047-2
- 06840 - Bendix Corp The (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 23047-0002
- 06840 - Bendix Corp The (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-087-8811
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance From Flatted Portion To Opposite Surface [AKXE]
- 0.230 Nominal Inches
- Accommodated Contact Quantity [AFRL]
- 4
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.250 Inches Nominal
- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Gold

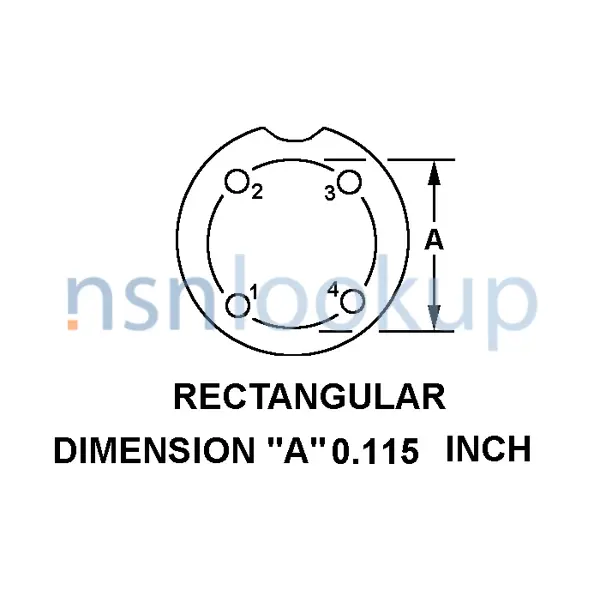

- Contact Position Arrangement Style [CRPY]
- Rectangular
- Mounting Hole Style [AEVB]
- Round, Flatted
- Mounting Method [AXGY]
- Press Fit
- Mounting Type For Which Designed [BCNX]
- Chassis
- Projection Length Above Mounting Surface [AKXD]
- 0.062 Nominal Inches
- Overall Diameter [ADAV]
- 0.281 Inches Nominal
- Overall Height [ABKW]
- 0.429 Inches Nominal
- Terminal Length [ABJT]
- 0.156 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 4 Pin
