5935-01-086-1744
Plug-In Electronic Components Socket
5935010861744 010861744 900334 415-0460-005 27E213
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
10
Marketplace 5935-01-086-1744
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-086-1744 5+ Documents (More...)
(Identification) 1/4 NSN 5935-01-086-1744 (Identification) 2/4 NSN 5935-01-086-1744 (Identification
NE Updated Every Day 5935-01-086-1744 RQST Updated Every Day 5935-01-086-1744 RQST NE Related Documents
your Account Upgrade 5915-01-203-3069Electrical Filter Assembly5915012033069 012033069 9338359 21-900334
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-086-1744 Plug-In Electronic Components Socket,900334
Plug-In Electronic Components Socket,900334 your Account Upgrade 5935-01-086-1744Plug-In Electronic
Components Socket5935010861744 010861744 900334 900334 your Account Upgrade 5915-01-203-3069Electrical
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-305-2916 Plug-In Electronic Components Socket 27E213
RQST NE Updated Every Day 5935-01-305-2916 RQST https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-086-1744
your Account Upgrade 5915-01-203-3069Electrical Filter Assembly5915012033069 012033069 9338359 21-900334
9338359 55104 - Tri-Star Electronics International, (Active) Secondary Buy RNCC 5 RNVC 2 DAC 5 21-900334
Restrictions 5935-01-086-1744
5935-01-086-1744 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-086-1744
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-086-1744
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-086-1744
- Part Number
- Manufacturer
- Status
- 27E213
- Manufacturer
- 77342 - Te Connectivity Corporation (Active)
- Original Design
- Original Design
- 900334
- 33013 - Logimetrics Inc (Active)
- Secondary Buy
- Secondary Buy
- 415-0460-005
- 94756 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-086-1744
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 23
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount
- Contact Material [AFRG]
- Brass

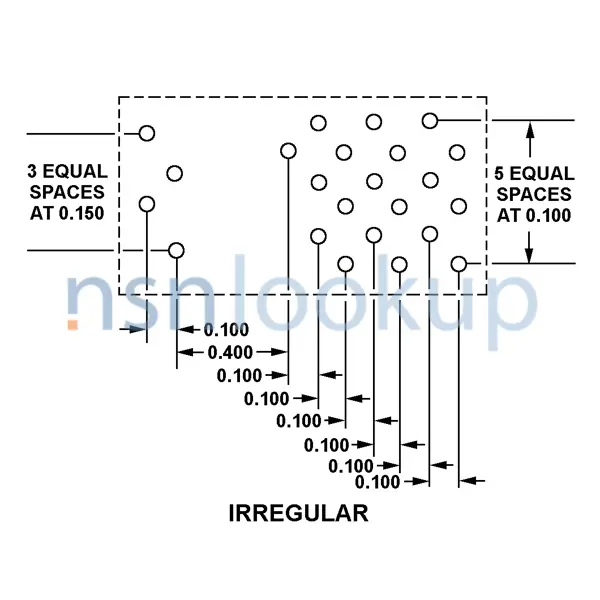

- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0
- Contact Surface Treatment [AFRH]
- Gold
- Missing Contact Designation [AKWF]
- 23Rd Contact Position
- Mounting Hole Diameter [ABTB]
- 0.120 Inches Nominal
- Mounting Hole Style [AEVB]
- Single Mounting Hole/Slot
- Mounting Method [AXGY]
- Unthreaded Hole And Terminal
- Mounting Type For Which Designed [BCNX]
- Chassis Or Printed Circuit
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.022 Gold Grains, Troy
- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Twenty Three Hole
- Overall Height [ABKW]
- 0.530 Inches Nominal
- Overall Length [ABHP]
- 1.184 Inches Nominal
- Overall Width [ABMK]
- 0.750 Inches Nominal
- Terminal Length [ABJT]
- 0.180 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 22 Printed Circuit
