5935-01-084-9307
Electrical Connector Backshell
5935010849307 010849307 MRE34H-9JTD
An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables.It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device.It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions. View more Electrical Connector Backshell
January 2023
11
Marketplace 5935-01-084-9307
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-084-9307 4+ Documents (More...)
Electrical Connector Backshell 5935010849307 MRE34H-9JTD BACKSHELL,ELECTRICAL CONNECTOR RQST NS Request
Connector Backshell5935010849307 010849307 MRE34H MRE34H-9JTD BACKSHELL,ELECTRICAL CONNECTOR RQST NS
Electrical Connector Backshell 5935010849307 Upgrade your Account Upgrade 5935-01-084-9307Electrical
Connector Backshell5935010849307 010849307 MRE34H MRE34H-9JTD BACKSHELL,ELECTRICAL CONNECTOR RQST NS
MRE34H-8JTD BACKSHELL,ELECTRICAL CONNECTOR 94 EA https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-084-9307
Electrical Connector Backshell 5935010849307 MRE34H-9JTD BACKSHELL,ELECTRICAL CONNECTOR RQST NS
Electrical Connector Backshell 5935010849307 Electrical P Shield 5935991006858991006858 vendors
Restrictions 5935-01-084-9307
5935-01-084-9307 is a Electrical Connector Backshell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-084-9307
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-084-9307
- NASA (G940)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-084-9307
- Part Number
- Manufacturer
- Status
- MRE34H-9JTD
- Manufacturer
- 81312 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-084-9307
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Length [AGTX]
- 0.812 Inches Nominal
- Cable Opening Quantity [AKRD]
- 1
- Cable Opening Width [AGTY]
- 0.562 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.688 Inches Nominal
- Furnished Items [ABFF]
- Monojackscrew And Monojacksocket
- End Item Identification [AGAV]
- Mrac34p Or S Connectors
- Material [MATT]
- Aluminum
- Mounting Facility Type And Quantity [AXHR]
- 2 Jackscrew
- Size Designation [ALJP]
- 34
- Overall Height [ABKW]
- 2.406 Inches Nominal
- Overall Length [ABHP]
- 2.422 Inches Nominal
- Overall Width [ABMK]
- 0.828 Inches Nominal

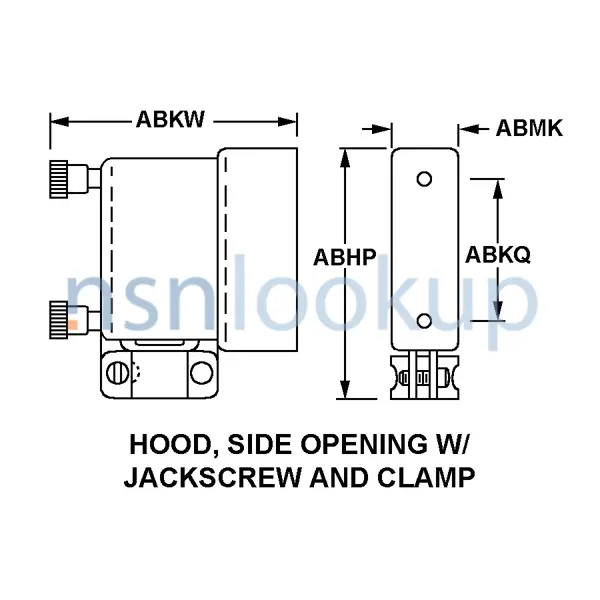

- Style Designator [STYL]
- Hood, Side Opening W/Jackscrew And Clamp
- Surface Treatment [SFTT]
- Anodize
Similar Supply Items to 5935-01-084-9307
Freight Information 5935-01-084-9307
5935-01-084-9307 has freight characteristics.. 5935-01-084-9307 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
