5935-01-083-0155
Plug-In Electronic Components Socket
5935010830155 010830155 SD-51710-23
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
8
Marketplace 5935-01-083-0155
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-083-0155 5+ Documents (More...)
RQST NE Updated Every Day 5935-01-083-0155 RQST Updated Every Day 5935-01-083-0155 RQST NE Related Documents
5935-01-083-0155 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-083-0155
Components Socket your Account Upgrade 5935-01-083-0155Plug-In Electronic Components Socket5935010830155 010830155
010106541 010830155 010106541SD-51710-23 Day 5935-01-010-6541 RQST NE Related Documents https//www.nsnlookup.com
Components Socket your Account Upgrade 5935-01-083-0155Plug-In Electronic Components Socket5935010830155 010830155
Socket5935010106541 010106541 SD-51710 083-0155Plug-In Electronic Components Socket5935010830155 010830155
Plug-In Electronic Components Socket www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-083-0155 https
www.nsnlookup.com Plug-In Electronic Components Socket www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-083-0155
Restrictions 5935-01-083-0155
5935-01-083-0155 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-083-0155
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-083-0155
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-083-0155
- Part Number
- Manufacturer
- Status
- SD-51710-23
- Manufacturer
- 06776 - Robinson Nugent Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5935-01-083-0155
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 10
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount, Press Fit
- Bushing Hole And Keyway Length [AGVG]
- 0.430 Inches Nominal
- Contact Material [AFRG]
- Beryllium Copper
- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Hole Style [AEVB]
- Round, W/Keyway
- Mounting Method [AXGY]
- Terminal And Press Fit
- Mounting Type For Which Designed [BCNX]
- Printed Circuit Or Chassis
- Polarization Type [AKWN]
- Slot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.010 Gold Grains, Troy

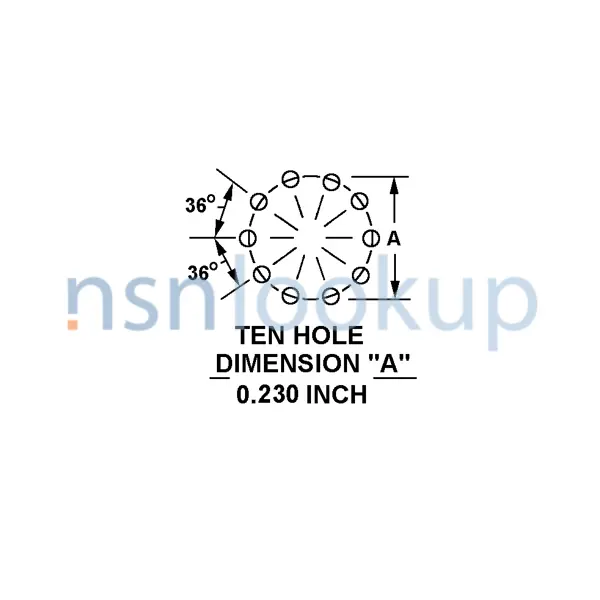

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Ten Hole Dimension "A" 0.230 Inch
- Overall Diameter [ADAV]
- 0.430 Inches Nominal
- Overall Height [ABKW]
- 0.255 Inches Nominal
- Terminal Length [ABJT]
- 0.130 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 10 Wire Lead
NATO Stock Numbers Related to 5935-01-083-0155
Freight Information 5935-01-083-0155
5935-01-083-0155 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-083-0155 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-083-0155 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-083-0155 is not classified as a special type of cargo when transported by water. 5935-01-083-0155 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-083-0155
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
