5935-01-070-3204
Electrical Connector Retaining Plate
5935010703204 010703204 11781651 8680129-301 8680129-501
A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE. View more Electrical Connector Retaining Plate
May 2023
8
Marketplace 5935-01-070-3204
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-070-3204 1+ Documents (More...)
United States (US) 4. 5935-01-070-3204 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5935-01-070-3204 RQST NE Updated Every Day 5935-01-070-3204 RQST
Restrictions 5935-01-070-3204
5935-01-070-3204 is a Electrical Connector Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-070-3204
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-070-3204
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BF
Approved Sources 5935-01-070-3204
- Part Number
- Manufacturer
- Status
- 11781651
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 8680129-301
- 06481 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- 8680129-501
- 17863 - Litton Systems Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8680129-301
- 17863 - Litton Systems Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-070-3204
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Material [MATT]
- Aluminum Alloy
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Nominal Thread Length [AKMG]
- 0.155 Inches
- Nominal Thread Size [CQJX]
- 0.086 Inches
- Style Designator [STYL]

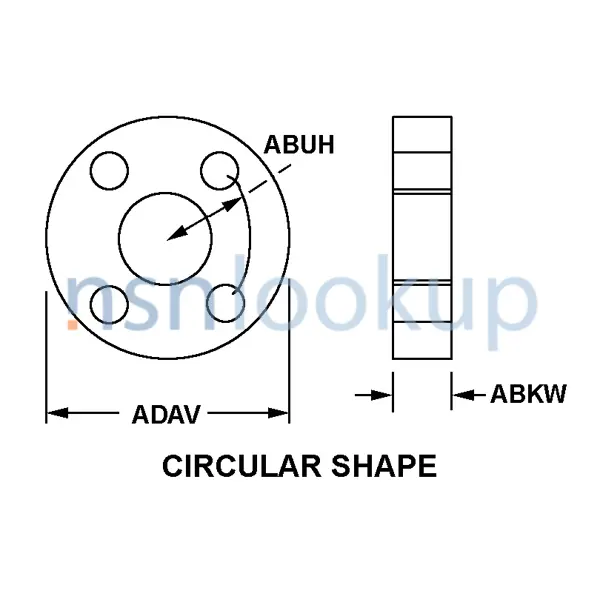

- Circular Shape
- Special Features [FEAT]
- 1.062-18 Unef-2B Internal Thread Size,0.200 In. Thread Depth;2 Thru Holes 0.062 In. Dia
- Overall Diameter [ADAV]
- 1.435 Inches Nominal
- Overall Height [ABKW]
- 0.420 Inches Nominal
- Surface Treatment [SFTT]
- Anodize
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
