5935-01-068-9357
Plug-In Electronic Components Socket
5935010689357 010689357 133-151-05
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
8
Marketplace 5935-01-068-9357
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-068-9357 1+ Documents (More...)
RQST NE Updated Every Day 5935-01-068-9357 RQST Updated Every Day 5935-01-068-9357 RQST NE Related
Documents 5935-01-068-9357 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
Restrictions 5935-01-068-9357
5935-01-068-9357 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-068-9357
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-068-9357
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5935-01-068-9357
- Part Number
- Manufacturer
- Status
- 133-151-05
- Manufacturer
- 26742 - Methode Electronics Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-068-9357
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 2
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.156 Inches Nominal
- Body Style [AAQL]
- Irregular
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.437 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.359 Inches Nominal
- Contact Material [AFRG]
- Any Acceptable

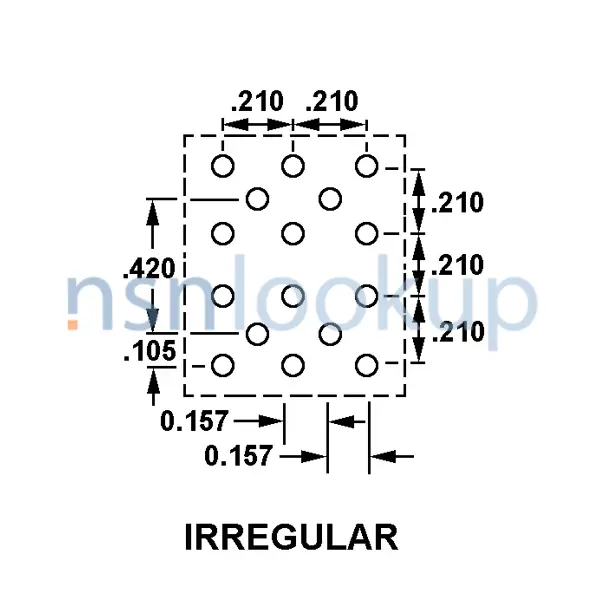

- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Surface Treatment [AFRH]
- Gold And Nickel
- Missing Contact Designation [AKWF]
- 15Th Contact Position And 16Th Contact Position
- Mounting Hole Diameter [ABTB]
- 0.156 Inches Nominal

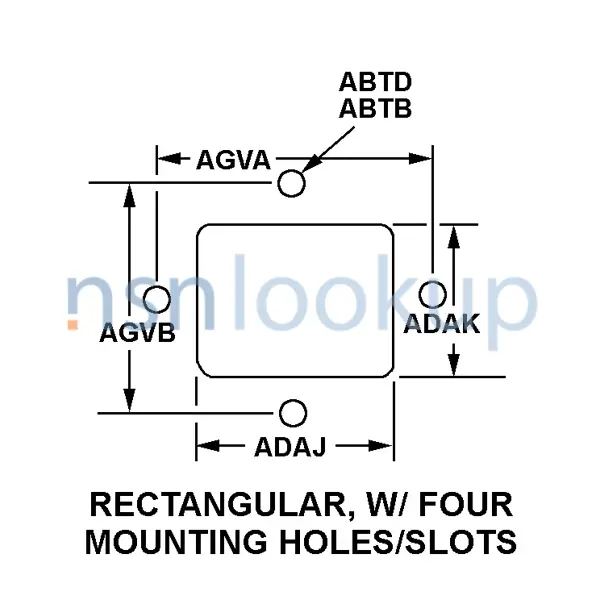

- Mounting Hole Style [AEVB]
- Rectangular, W/Four Mounting Holes/Slots
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Shape
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Overall Height [ABKW]
- 1.062 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 14 Solder Well
Similar Supply Items to 5935-01-068-9357
Freight Information 5935-01-068-9357
5935-01-068-9357 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-068-9357 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-068-9357 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-068-9357 is not classified as a special type of cargo when transported by water. 5935-01-068-9357 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-068-9357
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
