5935-01-068-7785
Electrical Plug Connector
5935010687785 010687785 MIL-DTL-83723/75 M83723/75R08038 MIL-C-83723/75
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
November 2023
19
Marketplace 5935-01-068-7785
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-068-7785 5+ Documents (More...)

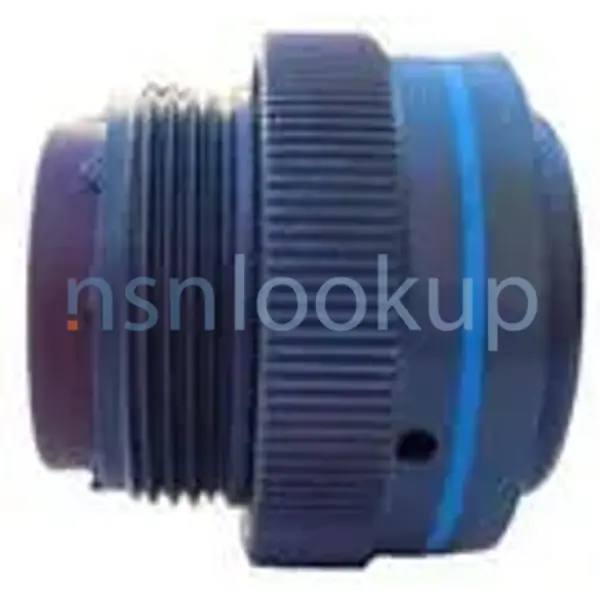

Photo 1/2 NSN 5935-01-068-7785 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5935-01-068-7785 RQST Updated Every Day 5935-01-068-7785 RQST NE Related Documents
M83723/75A24436 DL66R24-43S6 MIL-C-83723/75 An electrical fitting with electrical contacts, constructed
An electrical fitting with electrical contacts, constructed to be M83723/75A2219N MIL-C-83723/75
Electrical Plug Connector 5935010687785 M83723/75R08038 MIL-C-83723/75 An electrical fitting with
M83723/75R0803N MIL-C-83723/75 An electrical fitting with electrical contacts, constructed to be
Electrical Plug Connector 5935010687785 Upgrade your Account Upgrade 5935-01-068-7785Electrical
Plug Connector5935010687785 010687785 MIL-DTL-83723/75 M83723/75R08038 MIL-C-83723/75 An electrical
An electrical fitting with electrical contacts, constructed to be M83723/75R0803N MIL-C-83723/75
Electrical Plug Connector 5935010687785 Upgrade your Account Upgrade 5935-01-068-7785Electrical
Restrictions 5935-01-068-7785
5935-01-068-7785 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-068-7785
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-068-7785
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 Jan 2007
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 2004
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5935-01-068-7785
- Part Number
- Manufacturer
- Status
- M83723/75R08038
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-83723/75
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-C-83723/75
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-068-7785
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Connector Locking Method [AFRV]
- Bayonet Latch
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 8-3 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204,Type 1,Class 2 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping
- Environmental Protection [ADZC]
- Humidity Resistant And Salt Water Resistant And Shock Proof And Vibration Proof
- Body Style [AAQL]
- Straight Shape, Internal Coupling W/Backshell
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.290 Inches
- Nominal Thread Size [CQJX]
- 0.500 Inches
- Included Contact Quantity [CXCG]
- 3 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Socket Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Plastic Epoxy Single Mating End
- Insert Position In Deg [AFRP]
- 300.0
- Polarization Method [AFRN]
- Key, Multiple Key Groove
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.003 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Material Document And Classification [CTHH]
- Qq-A-367 Fed Spec Single Material Response
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment [CSWM]
- Nickel
- Shell Type [AFRT]
- Solid
- Overall Diameter [ADAV]
- 0.776 Inches Maximum
- Overall Length [ABHP]
- 1.230 Inches Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-C-83723/75 Government Specification
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-83723 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unf
- Threaded Device Type [AFQR]
- Back Shell
