5935-01-058-1256
Plug-In Electronic Components Socket
5935010581256 010581256 1200-0549 583773-6
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
23
Marketplace 5935-01-058-1256
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-058-1256 1+ Documents (More...)
(Identification) 1/3 NSN 5935-01-058-1256 (Identification) 2/3 NSN 5935-01-058-1256 (Identification
5935-01-058-1256 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-058-1256
Restrictions 5935-01-058-1256
5935-01-058-1256 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-058-1256
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-058-1256
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BDCL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Poland (WP01)
- Effective Date:
- 1 Nov 2003
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Mar 1997
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5935-01-058-1256
- Part Number
- Manufacturer
- Status
- 1200-0549
- Manufacturer
- 1LQK8 - Keysight Technologies, Inc. (Replaced)
- Original Design
- Original Design
- 583773-6
- 00779 - Te Connectivity Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1200-0549
- F5056 - Hewlett-Packard Centre De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1200-0549
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1200-0549
- 7ZXR5 - Keysight Technologies Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-058-1256
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- In-Line
- Accommodated Contact Quantity [AFRL]
- 14
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Tin
- Body Style [AAQL]
- Pcb, Standoff Terminals
- Overall Length [ABHP]
- 1.424 Inches Nominal
- Terminal Length [ABJT]
- 0.115 Inches Nominal
- Overall Height [ABKW]
- 0.275 Inches Nominal
- Overall Width [ABMK]
- 0.170 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal

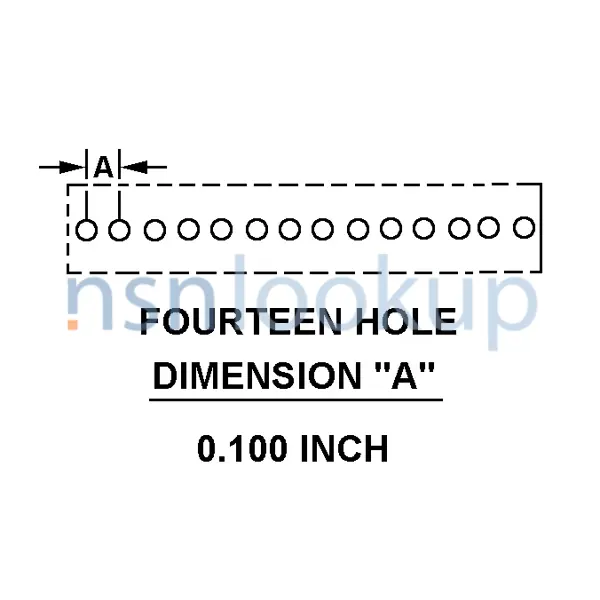

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Fourteen Hole
- Special Features [FEAT]
- Weapon System Essential
- Criticality Code Justification [CRTL]
- Feat
- End Item Identification [AGAV]
- Landing Craft Air Cushion (Lcac); Sturgeon Class Ssn (637); Forrestal Class Cv; Ticonderoga Class Cg (47); Kidd Class Ddg; Los Angeles Class Ssn (688); Virginia Class Cgn (41); Spruance Class Dd (963); Nimitz Class Cvn
