5935-01-030-6985
Electrical Plug Connector
5935010306985 010306985 XD100-13B C7-18P-VS/C38C
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
4
Marketplace 5935-01-030-6985
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-030-6985 2+ Documents (More...)
United States (US) 4. 5935-01-030-6985 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5935-01-030-6985
Electrical Plug Connector 5935010306985 Account Upgrade 5935-01-030-6985Electrical Plug Connector5935010306985
010306985 XD100-13B C7-18P-VS/C38C vendors Request Updated Every Day 5935-01-030-6985 https//www.nsnlookup.com
Restrictions 5935-01-030-6985
5935-01-030-6985 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-030-6985
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-030-6985
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5935-01-030-6985
- Part Number
- Manufacturer
- Status
- C7-18P-VS/C38C
- Manufacturer
- 95238 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
- XD100-13B
- 95238 - Winchester Interconnect Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5935-01-030-6985
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

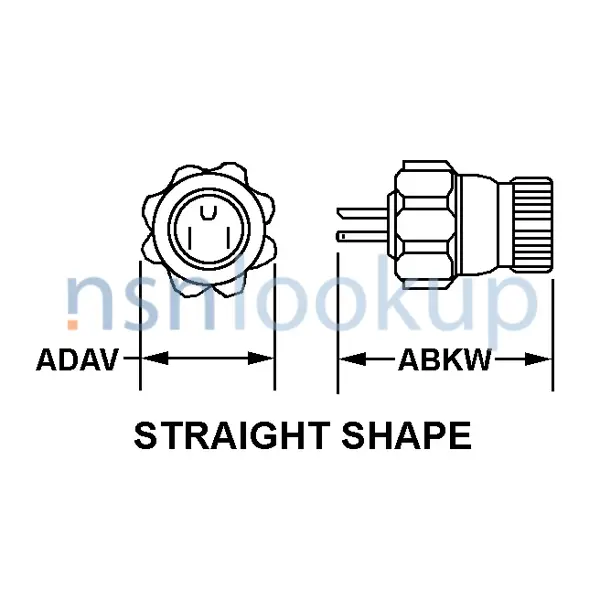

- Body Style [AAQL]
- Straight Shape
- Overall Height [ABKW]
- 0.840 Inches Nominal
- Overall Diameter [ADAV]
- 0.780 Inches Nominal
- Connector Locking Method [AFRV]
- Snap Ring
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Cable Entrance Diameter [AFQJ]
- 0.297 Inches Nominal
- Shell Type [AFRT]
- Hood, Top Opening
- Mating End Quantity [AFQW]
- 1
- Contact Position Arrangement Style [AFQX]
- Mh-7 Single Mating End
- Included Contact Quantity [CXCG]
- 7 Single Mating End Single Contact Grouping
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
