5935-01-021-1041
Plug-In Electronic Components Socket
5935010211041 010211041 27E131/20C251 27E131
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
June 2023
5
Marketplace 5935-01-021-1041
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-021-1041 3+ Documents (More...)
(Identification) 1/3 NSN 5935-01-021-1041 (Identification) 2/3 NSN 5935-01-021-1041 (Identification
RQST NE Updated Every Day 5935-01-021-1041 RQST Updated Every Day 5935-01-021-1041 RQST NE Related
Components https//www.nsnlookup.com /fsg-59/fsc- https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-021-1041
Plug-In Electronic Components Socket Updated Every Day 5935-01-021-1041 RQST NE Related https//
Components Socket Account Upgrade 5935-01-021-1041Plug-In Electronic Components Socket5935010211041 010211041
27E131/20C251 /www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-241-7668 Plug-In Electronic Components
Restrictions 5935-01-021-1041
5935-01-021-1041 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-021-1041
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-021-1041
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDJB
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-01-021-1041
- Part Number
- Manufacturer
- Status
- 27E131
- Manufacturer
- 77342 - Te Connectivity Corporation (Active)
- Original Design
- Original Design
- 27E131/20C251
- 77342 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-021-1041
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 24
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Width [ADAK]
- 0.625 Inches Nominal
- Body Style [AAQL]
- Rectangular
- Contact Material [AFRG]
- Copper Alloy
- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Maximum Current Rating In Amps [AFRC]
- 7.5
- Contact Surface Treatment [AFRH]
- Gold
- Distance Between Mounting Facility Centers [AEJN]
- 0.354 Inches Nominal
- Fabrication Method [AARN]
- Molded
- Missing Contact Designation [AKWF]
- 2Nd Contact Position And 3Rd Contact Position And 8Th Contact Position And 9Th Contact Position And 10Th Contact Position And 11Th Contact Position And 12Th Contact Position And 13Th Contact Postion And 17Th Contact Position And 18Th Contact Position And 19Th Contact Position And 20Th Contact Position And 21St Contact Position And 22Nd Contact Position And 23Rd Contact Position And 24Th Contact Position
- Mounting Hole Diameter [ABTB]
- 0.120 Inches Nominal
- Mounting Hole Style [AEVB]

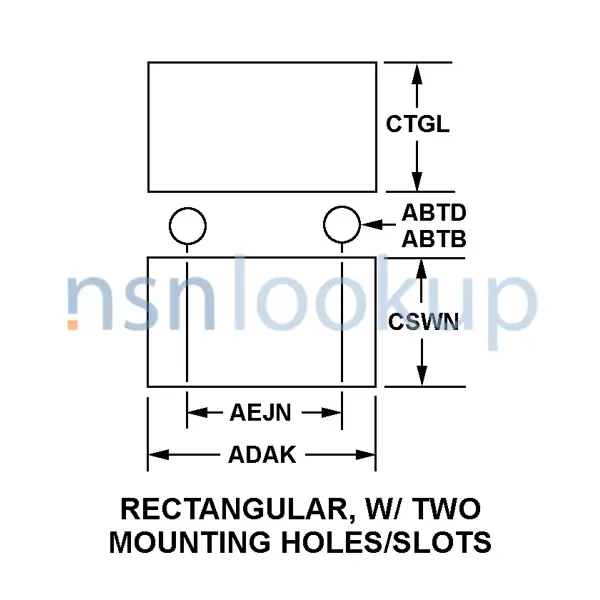

- Rectangular, W/Two Mounting Holes/Slots
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Longest Body Mounting Hole Accommodation Length [CTGL]
- 0.725 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy
- Shortest Body Mounting Hole Accommodation Length [CSWN]
- 0.235 Inches Nominal
- Overall Height [ABKW]
- 0.560 Inches Nominal
- Overall Length [ABHP]
- 1.390 Inches Nominal
- Overall Width [ABMK]
- 0.750 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Time Delay Relay
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
