5935-01-019-8908
Plug-In Electronic Components Socket
5935010198908 010198908 34010980
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
June 2023
3
Marketplace 5935-01-019-8908
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-019-8908 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-019-8908 RQST NE Updated Every Day 5935-01-019-8908 RQST
Updated Every Day 5935-01-019-8908 RQST NE Related Documents 5935-01-019-8908 1+ Documents ( More...
Restrictions 5935-01-019-8908
5935-01-019-8908 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-019-8908
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-019-8908
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
Approved Sources 5935-01-019-8908
- Part Number
- Manufacturer
- Status
- 34010980
- Manufacturer
- 30669 - E And R Electronics Inc (Obsolete)
- Primary Buy
- Primary Buy
Datasheet 5935-01-019-8908
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

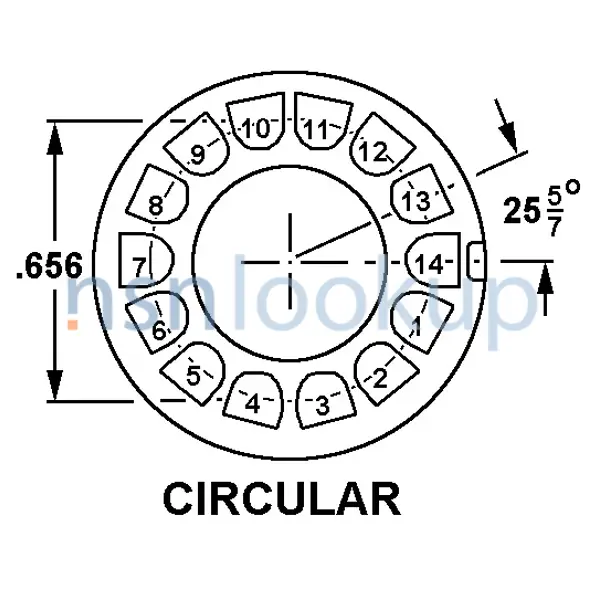

- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 14
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Mount
- Overall Height [ABKW]
- 0.781 Inches Nominal
- Overall Diameter [ADAV]
- 1.281 Inches Nominal
- Body Material [AAFZ]
- Ceramic
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Round, Body
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.312 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
