5935-01-013-9649
Plug-In Electronic Components Socket
5935010139649 010139649 TP-51710-23
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
12
Marketplace 5935-01-013-9649
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-013-9649 4+ Documents (More...)
SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation Updated Every Day 5935-01-013-9649
RQST NE Updated Every Day 5935-01-013-9649 RQST Updated Every Day 5935-01-013-9649 RQST NE Related Documents
5935/us 5935 your Account Upgrade 5935-01-013-9649Plug-In Electronic Components Socket5935010139649 010139649
Electronic Components Socket5935002579214 002579214 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-013-9649
Components Socket5935002579214 002579214 https https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-013-9649
Components Socket your Account Upgrade 5935-01-013-9649Plug-In Electronic Components Socket5935010139649 010139649
Plug-In Electronic Components Socket Electronic Components Socket5935010139649 010139649 https/
Restrictions 5935-01-013-9649
5935-01-013-9649 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-013-9649
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-013-9649
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5935-01-013-9649
- Part Number
- Manufacturer
- Status
- TP-51710-23
- Manufacturer
- 06776 - Robinson Nugent Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5935-01-013-9649
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance From Flatted Portion To Opposite Surface [AKXE]
- 0.325 Inches Minimum And 0.328 Inches Maximum
- Accommodated Contact Quantity [AFRL]
- 10
- Body Diameter [ABPM]
- 0.400 Inches Minimum And 0.410 Inches Maximum
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.345 Inches Minimum And 0.348 Inches Maximum
- Body Style [AAQL]

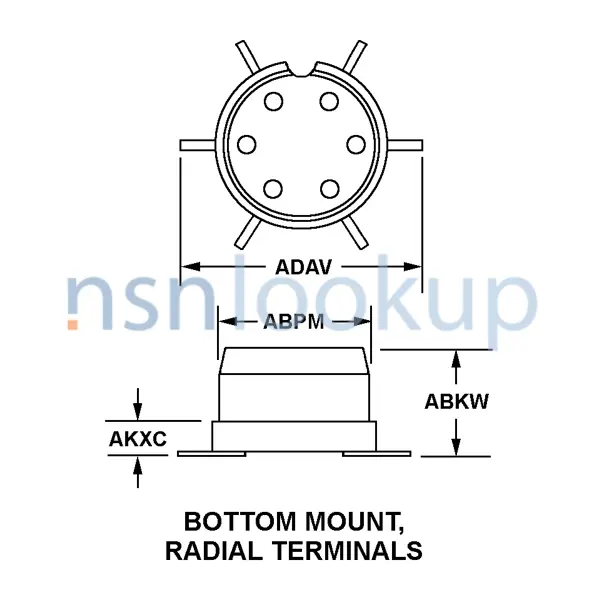

- Bottom Mount, Radial Terminals
- Contact Material [AFRG]
- Beryllium Copper
- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold And Copper
- Features Provided [CBBL]
- Center Shield And Component Retaining Device And Shock Mounts
- Mounting Hole Style [AEVB]
- Round, Flatted
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Slot
- Projection Length Below Mounting Surface [AKXC]
- 0.142 Inches Minimum And 0.172 Inches Maximum
- Special Features [FEAT]
- 11/32-32 Thread Molded Into Body
- Overall Diameter [ADAV]
- 1.36876 Inches Minimum And 1.44126 Inches Maximum
- Overall Height [ABKW]
- 0.237 Inches Minimum And 0.257 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 10 Pin
