5935-01-009-8972
Plug-In Electronic Components Socket
5935010098972 010098972 10291586 9866-15-10
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
13
Marketplace 5935-01-009-8972
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-009-8972 3+ Documents (More...)
(Identification) 1/3 NSN 5935-01-009-8972 (Identification) 2/3 NSN 5935-01-009-8972 (Identification
RQST NE Updated Every Day 5935-01-009-8972 RQST Updated Every Day 5935-01-009-8972 RQST NE Related Documents
Components Socket Account Upgrade 5935-01-009-8972Plug-In Electronic Components Socket5935010098972 010098972
10291586 9866 Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor
Restrictions 5935-01-009-8972
5935-01-009-8972 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-009-8972
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-009-8972
- France (ZF01)
- Effective Date:
- 1 May 2015
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-009-8972
- Part Number
- Manufacturer
- Status
- 10291586
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 9866-15-10
- 72825 - Eby Group, Llc, The (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-009-8972
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 2
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]

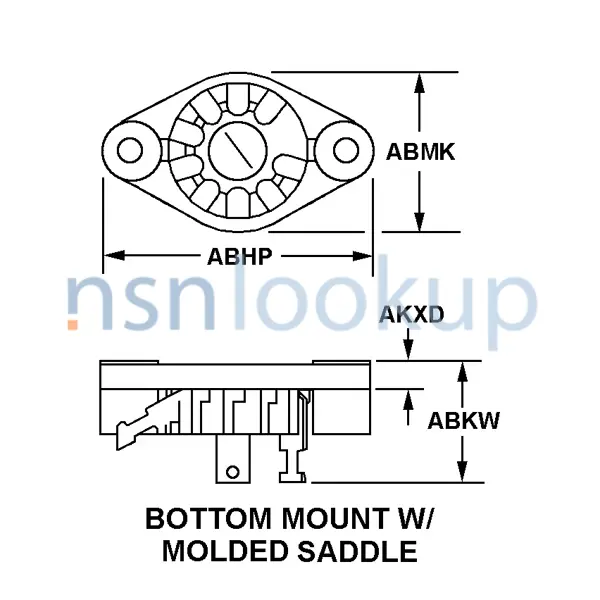

- Bottom Mount W/Molded Saddle
- Contact Material [AFRG]
- Phosphor Bronze
- Contact Position Arrangement Style [CRPY]
- In Line
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0
- Contact Surface Treatment [AFRH]
- Tin
- Distance Between Mounting Facility Centers [AEJN]
- 1.182 Inches Minimum And 1.192 Inches Maximum
- Mounting Hole Diameter [ABTB]
- 0.138 Inches Nominal
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Threaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Projection Length Above Mounting Surface [AKXD]
- 0.047 Inches Minimum And 0.077 Inches Maximum
- Overall Height [ABKW]
- 0.734 Inches Nominal
- Overall Length [ABHP]
- 1.532 Inches Minimum And 1.562 Inches Maximum
- Overall Width [ABMK]
- 0.672 Inches Minimum And 0.702 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
