5935-00-980-0434
Plug-In Electronic Components Socket
5935009800434 009800434 4182300-4 MS25324-4
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
20
Marketplace 5935-00-980-0434
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-980-0434 4+ Documents (More...)
(Identification) 1/3 NSN 5935-00-980-0434 (Identification) 2/3 NSN 5935-00-980-0434 (Identification
MS25324-4 SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation Updated Every Day 5935-00-980
5905010262111010262111 5905-01-026-2111Film Fixed Resistor5905010262111 010262111 RNC55K1652C321-0310-009800434
whose ohmic value cannot be adjusted or varied https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-980-0434
FIXED,FILM 150 EA NS https Components Socket Resistor5905010262111 010262111 RNC55K1652C321-0310-009800434
Plug-In Electronic Components Socket 5905010262111010262111 RNC55K1652C321-0310-009800434 https
Restrictions 5935-00-980-0434
5935-00-980-0434 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-980-0434
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-980-0434
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 1999
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5935-00-980-0434
- Part Number
- Manufacturer
- Status
- MS25324-4
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 4182300-4
- 05869 - Raytheon Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4182300-4
- 82577 - Raytheon Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5935-00-980-0434
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.834 Inches Minimum And 1.854 Inches Maximum
- Body Style [AAQL]
- Top Mount W/Molded Saddle
- Contact Material [AFRG]
- Copper Alloy
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0

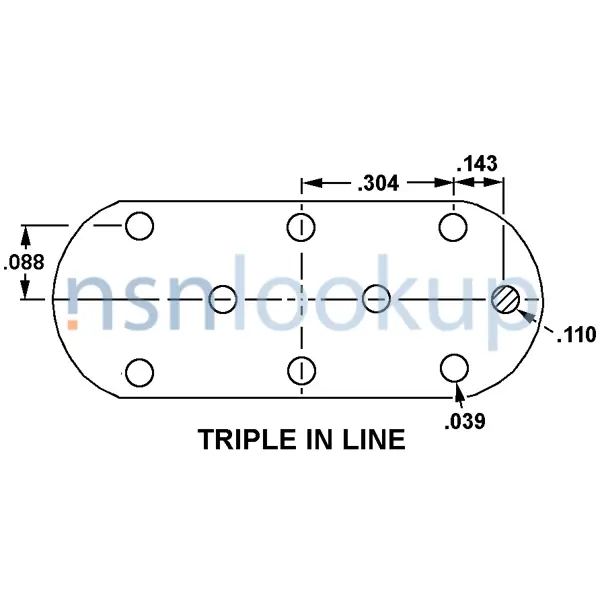

- Contact Position Arrangement Style [CRPY]
- Triple In Line
- Contact Maximum Voltage In Volts And Current Type [CSKW]
- 2500.0 Ac And 2500.0 Dc
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.839 Inches Minimum And 1.849 Inches Maximum
- Fabrication Method [AARN]
- Molded
- Mounting Hole Diameter [ABTB]
- 0.191 Inches Minimum And 0.201 Inches Maximum
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Off Center Hole
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy And 0.008 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Projection Length Above Mounting Surface [AKXD]
- 0.083 Inches Minimum And 0.103 Inches Maximum
- Overall Height [ABKW]
- 0.659 Inches Maximum
- Overall Length [ABHP]
- 2.218 Inches Maximum
- Overall Width [ABMK]
- 1.062 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Specification/Standard Data [ZZZK]
- 96906-Ms26324 Government Standard
- Temp Rating [ABJH]
- -65.0 Deg Celsius And 120.0 Deg Celsius
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
- Test Data Document [TEST]
- 96906-Ms25324 Standard (Includes Industry Or Association Standards, Individual Manufactureer Standards, Etc.).
