5935-00-976-1298
Plug-In Electronic Components Socket
5935009761298 009761298 SRC-14 040401-0003
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
12
Marketplace 5935-00-976-1298
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-976-1298 2+ Documents (More...)
(Identification) 1/3 NSN 5935-00-976-1298 (Identification) 2/3 NSN 5935-00-976-1298 (Identification
SRC-14 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request Quotation Updated Every Day 5935-00-976-1298
https//www.nsnlookup.com /fsg-61/fsc-6140/nl 6140-17-104-1301 Battery Cell 6140171041301171041301,SRC 14
Plug-In Electronic Components Socket,SRC-14 your Account Upgrade 5935-00-976-1298Plug-In Electronic
Restrictions 5935-00-976-1298
5935-00-976-1298 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-976-1298
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-976-1298
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-976-1298
- Part Number
- Manufacturer
- Status
- SRC-14
- Manufacturer
- 71468 - Itt Cannon Llc (Active)
- Primary Buy
- Primary Buy
- 040401-0003
- 71468 - Itt Cannon Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-976-1298
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.515 Inches Minimum And 1.535 Inches Maximum
- Body Mounting Hole Accommodation Width [ADAK]
- 1.021 Inches Minimum And 1.041 Inches Maximum
- Body Style [AAQL]
- Top Mount W/Molded Saddle
- Contact Material [AFRG]
- Copper Alloy

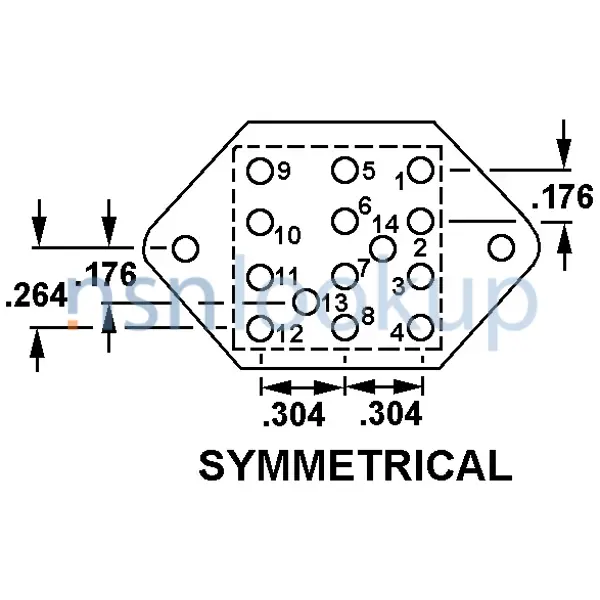

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Contact Surface Treatment [AFRH]
- Gold
- Distance Between Mounting Facility Centers [AEJN]
- 1.834 Inches Minimum And 1.854 Inches Maximum
- Fabrication Method [AARN]
- Molded
- Mounting Hole Style [AEVB]
- Rectangular, W/External Slots
- Mounting Slot Width [ABTD]
- 0.218 Inches Nominal
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Off Center Hole
- Precious Material And Location [PMLC]
- Contacts Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Overall Height [ABKW]
- 1.310 Inches Maximum
- Overall Length [ABHP]
- 2.281 Inches Maximum
- Overall Width [ABMK]
- 1.062 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Relay
- Terminal Type And Quantity [TTQY]
- 14 Crimp
