5935-00-976-1293
Plug-In Electronic Components Socket
5935009761293 009761293 SRC-20 040401-0005
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
19
Marketplace 5935-00-976-1293
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-976-1293 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-976-1293 (Identification) 2/3 NSN 5935-00-976-1293 (Identification
SRC-20 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 6 EA NS Request Quotation Updated Every Day 5935-00-976-1293
Plug-In Electronic Components Socket,SRC-20 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00
Components Socket5935009761293 009761293 SRC-20 SRC-20 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
Plug-In Electronic Components Socket,SRC-20 20 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS https
6140171041300171041300,R20NCP Account Upgrade https https -20 Nonabsorbable Suture6515010355601 010355601 SRC-20
SRC-20 COUPLING,SHAFT,FLEXIBLE 6 EA NS Request Quotation FedMall Updated Every 15 Minutes 3010-01-321
your Account Upgrade 5935-00-976-1293Plug-In Electronic Components Socket5935009761293 009761293 SRC
Upgrade your Account Upgrade 6515-01-035-5601Surgical Nonabsorbable Suture6515010355601 010355601 SRC-20
Plug-In Electronic Components Socket,SRC-20 us 5935-00-976-1293 Plug-In Electronic Components Socket
Restrictions 5935-00-976-1293
5935-00-976-1293 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-976-1293
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-976-1293
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2010
Approved Sources 5935-00-976-1293
- Part Number
- Manufacturer
- Status
- SRC-20
- Manufacturer
- 71468 - Itt Cannon Llc (Active)
- Primary Buy
- Primary Buy
- 040401-0005
- 71468 - Itt Cannon Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-976-1293
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 20
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.240 Inches Minimum And 1.260 Inches Maximum
- Body Style [AAQL]
- Top Mount W/Molded Saddle
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 0.740 Inches Minimum And 0.760 Inches Maximum
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.834 Inches Minimum And 1.854 Inches Maximum
- Contact Material [AFRG]
- Copper Alloy
- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Hole Diameter [ABTB]
- 0.196 Inches Nominal
- Mounting Hole Style [AEVB]
- Round, W/Three Mounting Holes/Slots
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis

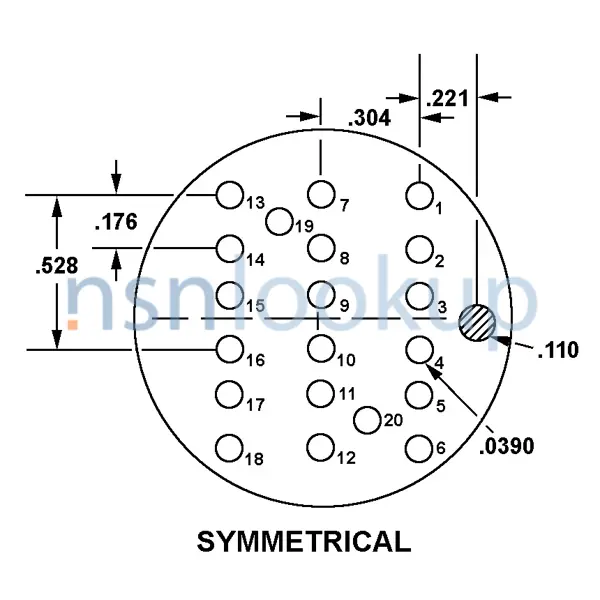

- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.020 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Above Mounting Surface [AKXD]
- 0.339 Inches Minimum And 0.379 Inches Maximum
- Overall Height [ABKW]
- 1.310 Inches Maximum
- Overall Length [ABHP]
- 2.281 Inches Maximum
- Overall Width [ABMK]
- 1.640 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 20 Crimp
