5935-00-974-1816
Plug-In Electronic Components Socket
5935009741816 009741816 78-8457-8011-9 7460-0021
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
8
Marketplace 5935-00-974-1816
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-974-1816 2+ Documents (More...)
(Identification) 1/3 NSN 5935-00-974-1816 (Identification) 2/3 NSN 5935-00-974-1816 (Identification
NE Updated Every Day 78-8457-8011-9 RQST NE Updated Every Day 5935-00-974-1816 RQST NE Updated Every
Plug-In Electronic Components Socket Every Day 5935-00-974-1816 RQST NE Updated Every https//www.nsnlookup.com
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5935-00-974-1816
Restrictions 5935-00-974-1816
5935-00-974-1816 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-974-1816
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-974-1816
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5935-00-974-1816
- Part Number
- Manufacturer
- Status
- 7460-0021
- Manufacturer
- 94991 - Gte Products Corp Precision (Active)
- Primary Buy
- Primary Buy
- 78-8457-8011-9
- 5H263 - Decisionone Corp (Active)
- Secondary Buy
- Secondary Buy
- 7460-0021
- 04655 - General Dynamics Mission Systems, (Active)
- Secondary Buy
- Secondary Buy
- 78-8457-8011-9
- 1BY21 - 3M Co Engineering Document Systems (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 78-8457-8011-9
- 94862 - Minnesota Mining And Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 78-8457-8011-9
- 39711 - Imation Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7460-0021
- 58854 - Gte Products Corp Lighting Products (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 78-8457-8011-9
- 76381 - 3M Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-974-1816
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

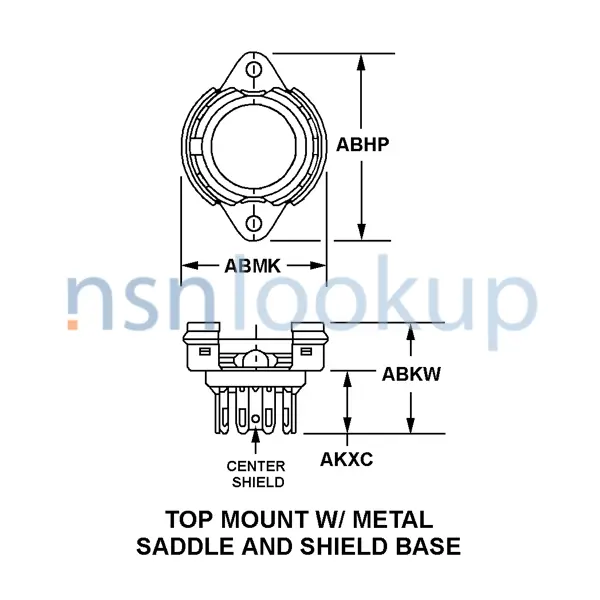

- Accommodated Contact Quantity [AFRL]
- 4
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.272 Inches Nominal
- Body Style [AAQL]
- Top Mount W/Metal Saddle And Shield Base
- Component Shield Mounting Method [AKWK]
- Force Fit
- Contact Material [AFRG]
- Brass

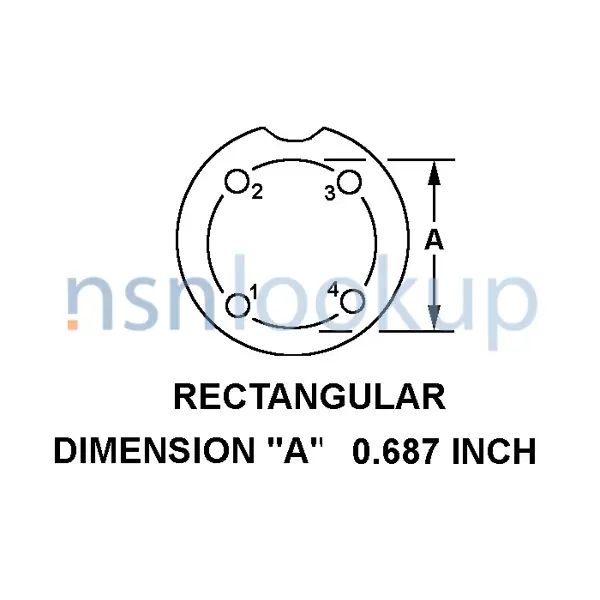

- Contact Position Arrangement Style [CRPY]
- Rectangular
- Contact Surface Treatment [AFRH]
- Cadmium
- Distance Between Mounting Facility Centers [AEJN]
- 1.745 Inches Minimum And 1.755 Inches Maximum
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Center Shield
- Mounting Hole Diameter [ABTB]
- 0.132 Inches Nominal
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Size
- Projection Length Below Mounting Surface [AKXC]
- 0.344 Inches Nominal
- Overall Height [ABKW]
- 0.969 Inches Nominal
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Terminal Type And Quantity [TTQY]
- 4 Tab, Solder Lug
DLA Procurement Analysis 5935-00-974-1816
Management Data 5935-00-974-1816
Similar Supply Items to 5935-00-974-1816
Freight Information 5935-00-974-1816
5935-00-974-1816 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-974-1816 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-974-1816 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-974-1816 is not classified as a special type of cargo when transported by water. 5935-00-974-1816 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
