5935-00-958-5699
Plug-In Electronic Components Socket
5935009585699 009585699 MT14R1 10608125-1 11542-1
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
10
Marketplace 5935-00-958-5699
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-958-5699 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-958-5699 (Identification) 2/3 NSN 5935-00-958-5699 (Identification
BUY NE FedMall Updated Every Day 5935-00-958-5699 RQST NE Updated Every Day 5935-00-958-5699 RQST
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-958-5699 Plug-In Electronic Components Socket
,MT14R1 Upgrade 5935-00-958-5699Plug-In Electronic Components Socket5935009585699 009585699 MT14R1 10608125
1680-01-032-5201 Back Frame 1680010325201 010325201,11542-1 Helical Spring5360002915426 002915426 11542-1
AMC 0 AMSC 0 IMC Z IMCACTY SX Approved Sources 5995-01-569-2820 Part NumberManufacturerStatus827-11542-1
-01-032-5201 Back Frame 1680010325201 010325201,11542-1 217-6826 Part NumberManufacturerStatus377-11542-1
a day Upgrade your Account Upgrade 4710-01-123-7610Metal Tube Assembly4710011237610 011237610361-11542-1
) https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-140-0303 Shim 5365011400303 011400303,2000-11542-1
) https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-140-0303 Shim 5365011400303 011400303,2000-11542-1
Restrictions 5935-00-958-5699
5935-00-958-5699 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-958-5699
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-958-5699
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- KE
Approved Sources 5935-00-958-5699
- Part Number
- Manufacturer
- Status
- MT14R1
- Manufacturer
- 09922 - Souriau Usa, Inc. (Active)
- Primary Buy
- Primary Buy
- 10608125-1
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
- 11542-1
- 11189 - Kaiser Aerospace And Electronics (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-958-5699
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.052 Inches Minimum And 1.072 Inches Maximum
- Body Style [AAQL]
- Top Mount W/Molded Saddle
- Contact Material [AFRG]
- Brass
- Contact Maximum Current Rating In Amps [AFRC]
- 13.0

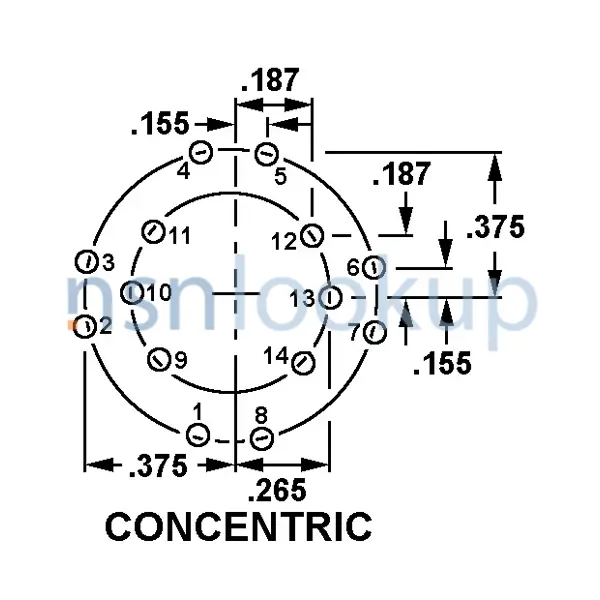

- Contact Position Arrangement Style [CRPY]
- Concentric
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.521 Inches Minimum And 1.541 Inches Maximum
- Furnished Items And Quantity [TMQY]
- 2 Stud And 2 Screw And 2 Nut And 2 Lock Washer
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Component Retaining Device
- Mounting Hole Diameter [ABTB]
- 0.209 Inches Minimum And 0.229 Inches Maximum
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Polarization Type [AKWN]
- Colored Dot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy And 0.014 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Overall Height [ABKW]
- 0.932 Inches Minimum And 0.952 Inches Maximum
- Overall Length [ABHP]
- 1.995 Inches Minimum And 2.015 Inches Maximum
- Overall Width [ABMK]
- 1.180 Inches Minimum And 1.200 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Relay
- Terminal Type And Quantity [TTQY]
- 14 Tab W/Screw
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
DLA Procurement Analysis 5935-00-958-5699
Management Data 5935-00-958-5699
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-958-5699
Freight Information 5935-00-958-5699
5935-00-958-5699 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-958-5699 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-958-5699 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-958-5699 is not classified as a special type of cargo when transported by water. 5935-00-958-5699 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-958-5699
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
