5935-00-935-2236
Electrical Receptacle Connector
5935009352236 009352236 MIL-DTL-2726/9 9000S6202-73882PC9SYMB0L758 758-1 SYM758 NSECSK6157E041668 SYM758.1 M2726/9-001 MILR2726-9
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
November 2023
32
Marketplace 5935-00-935-2236
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-935-2236 5+ Documents (More...)
SYM758.1 CONNECTOR,RECEPTACLE,ELECTRICAL 7 EA NS Request Quotation Updated Every Day 5935-00-935-2236
Electrical Receptacle Connector 009352236 NAConsolidated With 5935-00-935-2236 https https/ https
Marketplace Restrictions Approved Sources Datasheet https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-935-2236
Electrical Receptacle Connector 009352236 NAConsolidated With 5935-00-935-2236 https https/ https
Related Documents 5935-00-851-6743 2+ Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-935-2236
Electrical Receptacle Connector 009352236 IZDiscontinued-Use 5935-00-935-2236 https/ https/ https
Marketplace Restrictions Approved Sources Datasheet https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-935-2236
Electrical Receptacle Connector 009352236 EA NS Request Quotation Updated Every Day 5935 https/
www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-001-2793 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-935-2236
Electrical Receptacle Connector 009352236 Request Quotation Updated Every Day 5935-00-935-2236
Restrictions 5935-00-935-2236
5935-00-935-2236 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-935-2236
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-935-2236
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- C007
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHXHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Brazil (YA01)
- Effective Date:
- 1 Mar 2003
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-935-2236
- Part Number
- Manufacturer
- Status
- M2726/9-001
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-2726/9
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILR2726-9
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 9000S6202-73882PC9SYMB0L758
- 80064 - Naval Ship Systems Command (Active)
- Advisory Reference
- Advisory Reference
- 758-1
- 58475 - L-3 Communications Westwood (Active)
- Advisory Reference
- Advisory Reference
- SYM758
- 80064 - Naval Ship Systems Command (Active)
- Advisory Reference
- Advisory Reference
- NSECSK6157E041668
- 80064 - Naval Ship Systems Command (Active)
- Advisory Reference
- Advisory Reference
- SYM758.1
- 03950 - Naval Inventory Control Point (Active)
- Advisory Reference
- Advisory Reference
- SYM758
- 26042 - Graybar Electric Company, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-935-2236
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Rear Face [AFQL]
- 2.000 Inches Nominal
- Bushing Diameter [ABKH]
- 1.938 Inches Nominal
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 450.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- B4s Single Mating End
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 40.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping
- Environmental Protection [ADZC]
- Salt Water Resistant

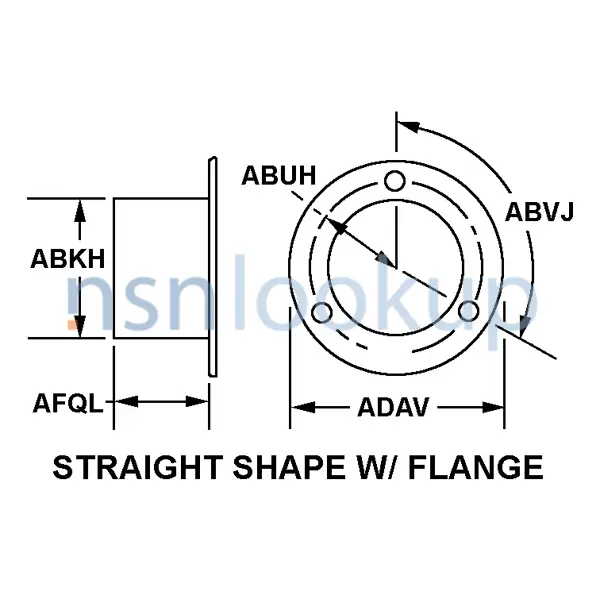

- Body Style [AAQL]
