5935-00-932-4560

Electrical Connector Retainer

5935009324560 009324560 ST44051 2031402-3 2928412-2 2039706-3 1026135D 9115C0041-3 600058P3 235-004-002 7727982P15 5305006117 5L.4596.001.22 117754-02 107135-2 A6919 MD20420 508/4/25553/001-S 76 166 127-0078-002 371-0180-000 000000-0076.166 50101026-002 S5001728 70087103 003-008485 8042678

An item specifically designed to restrain the movement of an electrical connector, when the latter is mounted in another item. Includes clamps, clips, and similar restraining devices specifically designed for this function. Excludes CLIP, ELECTRICAL and CLAMP, LOOP. View more Electrical Connector Retainer

Managed by United States

NSN Created on 13 Feb 1967

Data Last Changed
November 2023

NATO Update Count
79

NATO Data Quality

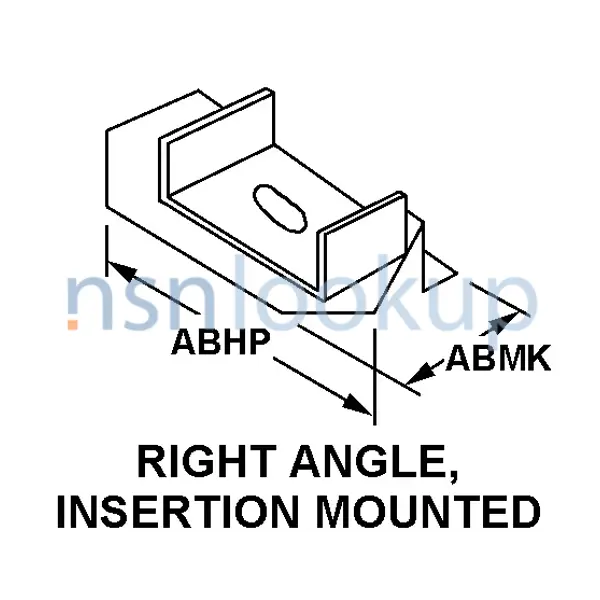

STYL Style 90B for 5935-00-932-4560 1/1 — NSN 5935-00-932-4560 (Identification) 1/1

Marketplace 5935-00-932-4560

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 1 EA NS

Subscribe to View Vendor Details...

9115C0041-3 RETAINER,ELECTRICAL CONNECTOR 4 EA NS

DE512241 RETAINER,ELECTRICAL CONNECTOR 2 EA NS

5935-00-932-4560 RETAINER,ELECTRICAL CONNECTOR 2 EA NS

Subscribe to View Vendor Details...

A6919 RETAINER,ELECTRICAL CONNECTOR 3 EA NS

D20420 RETAINER,ELECTRICAL CONNECTOR 30 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 1 EA NS

Subscribe to View Vendor Details...

5935-00-932-4560 RETAINER,ELECTRICAL CONNECTOR 5 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 6 EA NS

Subscribe to View Vendor Details...

5935-00-073-8885 RETAINER,ELECTRICAL CONNECTOR 6 EA NS

D20420 RETAINER,ELECTRICAL CONNECTOR 2 EA NS

5935-00-932-4560 RETAINER,ELECTRICAL CONNECTOR 1 EA NS

204-208 RETAINER,ELECTRICAL CONNECTOR 2147 EA NS

Subscribe to View Vendor Details...

20420 RETAINER,ELECTRICAL CONNECTOR 8 EA NS

D20420- RETAINER,ELECTRICAL CONNECTOR 50 EA NS

9115C0041-3 RETAINER,ELECTRICAL CONNECTOR 5 EA NS

D20420-0 RETAINER,ELECTRICAL CONNECTOR 8 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 220 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 36 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 334 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 157 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 5 EA NS

5935-00-932-4560 RETAINER,ELECTRICAL CONNECTOR 5 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 65 EA NS

Subscribe to View Vendor Details...

D20420 RETAINER,ELECTRICAL CONNECTOR 11 EA NS

A6919 RETAINER,ELECTRICAL CONNECTOR 11 EA NS

G33NC50N0N3T RETAINER,ELECTRICAL CONNECTOR 1 EA NS

Updated Every Day

5935-00-932-4560 RQST NE

Updated Every Day

5935-00-932-4560 RQST

Updated Every Day

5935-00-932-4560 RQST NE

Restrictions 5935-00-932-4560

5935-00-932-4560 is a Electrical Connector Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5935-00-932-4560

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5935-00-932-4560

US Army (A918)
Effective Date:: 1 Nov 2005
Former MOE Rule:: A196
Supplementary Receivers:: BDCL; AMC 1 AMSC C IMC Z IMCACTY CD

US Coast Guard (C911)
Effective Date:: 1 Nov 2005
Former MOE Rule:: C007; AMC 1 AMSC C

US Air Force (FXGX)
Effective Date:: 1 Nov 2005
Former MOE Rule:: FXTX; AMC 1 AMSC C IMC Z IMCACTY SX

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

US Marine Corps (MC49)
Effective Date:: 1 Nov 2005
Former MOE Rule:: MC13; AMC 1 AMSC C IMC Z IMCACTY PA

US Navy (N9BN)
Effective Date:: 1 Nov 2005
Former MOE Rule:: N9ND
Supplementary Collaborators:: GTKEJBHD; AMC 1 AMSC C IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Nov 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Aug 2000

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Oct 2009

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 2000

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Aug 1995

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 May 2006

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5935-00-932-4560

Part Number
Manufacturer
Status
2039706-3: 10001 - Navair And Navsea Managed Original (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
ST44051: K0967 - Mbda Uk Ltd (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
1026135D: K0967 - Mbda Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
9115C0041-3: 94117 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
600058P3: 94117 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
235-004-002: 95542 - Northrop Grumman Systems Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
7727982P15: 03538 - Lockheed Martin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
5305006117: 0125B - General Dynamics European Land (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
5L.4596.001.22: D1901 - Hensoldt Sensors Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
117754-02: 35351 - Ge Aviation Systems Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
107135-2: 37695 - Raytheon Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
A6919: 05584 - Autodyne Manufacturing Co Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MD20420: KD399 - Daniamant Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
508/4/25553/001-S: U2982 - Bae Systems (Defence Systems) Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
76 166: D0703 - Carl Zeiss Ag (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
D20420: D1371 - Itt Cannon Gesellschaft Mit (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
127-0078-002: 94756 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
371-0180-000: 95105 - Rockwell Collins, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
000000-0076.166: D0703 - Carl Zeiss Ag (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
50101026-002: I9002 - Bureau De Gestion Otan Hawk (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
S5001728: K5974 - Rolls-Royce Plc Naval Marine (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
D20420: K0316 - Itt Industries Limited, Itt Cannon (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
70087103: K6451 - Bae Systems Marine Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
003-008485: 26916 - Northrop Grumman Systems Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
D20420: 71468 - Itt Cannon Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
8042678: 18876 - Us Army Aviation And Missile Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
D20420: 71785 - Cinch Connectivity Solutions Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
20420-8: 71468 - Itt Cannon Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MD20420: U0913 - Mcmurdo Limited (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
7727982P15: 24446 - General Electric Company (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
9115C0041-3: 87557 - Lockheed Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
8630-03: 59610 - Souriau Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
D-20420-0: 71785 - Cinch Connectivity Solutions Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
20420: 71785 - Cinch Connectivity Solutions Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
D20420: C5108 - Delcom Electronic Gmbh (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
57571700-05: 27963 - General Dynamics Information Systems (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
G33NC50N0N3T: 12464 - Mcdonnell Douglas Corp Mcdonnell (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
900215-33: 13973 - Litton Systems Inc. Div Navigation (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5935PL1386923: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
2031402-3: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2928412-2: 99971 - Lockheed Martin Corp Naval (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
99002A8139-6: 01365 - Marine Corps Systems Command (Active); Informational Drawing; RNCC D RNVC 9 DAC 2

Datasheet 5935-00-932-4560

Characteristic
Specifications
FIIG: A062A0
Accommodated Item Securing Device Type [AGTM]: Clamp
Mounting Facility Type And Quantity [AXHR]: 1 Threaded Stud Single Mounting Facility
Mounting Stud Length [ADAG]: 0.343 Inches Nominal Single Mounting Facility
Nominal Thread Size [CQJX]: 0.112 Inches Single Mounting Facility
Material [MATT]: Steel
Overall Length [ABHP]: 0.656 Inches Nominal
Overall Width [ABMK]: 0.188 Inches Nominal
Style Designator [STYL]: Right Angle, Insertion Mounted
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses
Surface Treatment [SFTT]: Cadmium And Chromate
Thread Class [AAJD]: 2A Single Mounting Facility
Thread Quantity Per Inch [CMLP]: 40 Single Mounting Facility
Thread Series Designator [THSD]: Unc Single Mounting Facility

Weapon Systems (WSDC) 5935-00-932-4560

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5935-00-932-4560

Last Stock Position:: 3313 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5935-00-932-4560

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: US Coast Guard (GP); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Mar 2020: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

QH: Avionics
Fixed Wing Unique Avionics

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5935-00-932-4560

5935-14-414-2368 5935-99-711-8639 5935-14-300-8070 5935-14-331-6056 5935-14-370-5348 5935-14-520-3946 5935-14-361-4395 5935-14-376-8777 5935-14-529-6798 5935-14-446-1745 5935-14-341-8954 5935-14-325-4944 5935-12-180-1258 5935-27-057-7297 5935-14-311-8992 5935-14-474-0945 5935-14-420-4551 5935-99-911-5880

Freight Information 5935-00-932-4560

5935-00-932-4560 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-932-4560 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-932-4560 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-932-4560 is not classified as a special type of cargo when transported by water. 5935-00-932-4560 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5935-00-932-4560

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 0.7" H x 0.2" W x -- L; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Contracting Technical Data File (CTDF) 5935-00-932-4560 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5935-00-932-4560

Related Documents 5935-00-932-4560 5+ Documents (More...)

Restrictions 5935-00-932-4560

Import and Export 5935-00-932-4560

End Users 5935-00-932-4560

Approved Sources 5935-00-932-4560

Datasheet 5935-00-932-4560

Weapon Systems (WSDC) 5935-00-932-4560

DLA Procurement Analysis 5935-00-932-4560

Management Data 5935-00-932-4560

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5935-00-932-4560

Freight Information 5935-00-932-4560

Packaging Data 5935-00-932-4560

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Contracting Technical Data File (CTDF) 5935-00-932-4560 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
