5935-00-931-4011
Plug-In Electronic Components Socket
5935009314011 009314011 HRT48KJ 350721-7
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
3
Marketplace 5935-00-931-4011
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-931-4011 3+ Documents (More...)
(Identification) 1/3 NSN 5935-00-931-4011 (Identification) 2/3 NSN 5935-00-931-4011 (Identification
5935-00-931-4011 BUY NE FedMall Updated Every Day 5935-00-931-4011 RQST NE Updated Every Day 5935-00
Components Socket Account Upgrade 5935-00-931-4011Plug-In Electronic Components Socket5935009314011 009314011
HRT48KJ 350721 5935-00-931-4011 RQST NE Updated Every Day 5935-00 https//www.nsnlookup.com /fsg-58/fsc
Components Socket5935009314009 009314009 HRT412KJ 350721 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-931-4011
Restrictions 5935-00-931-4011
5935-00-931-4011 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-931-4011
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-931-4011
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5935-00-931-4011
- Part Number
- Manufacturer
- Status
- 350721-7
- Manufacturer
- 80249 - Bae Systems Information And (Active)
- Original Design
- Original Design
- HRT48KJ
- 91663 - Armel De Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-931-4011
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 9
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.765 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.400 Inches Nominal
- Body Style [AAQL]
- Top Mount W/Studs
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.000 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.125 Inches Nominal
- Contact Material [AFRG]
- Phosphor Bronze

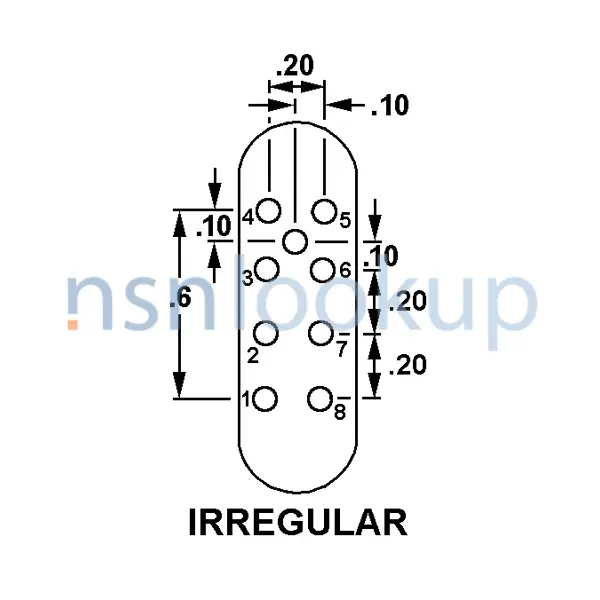

- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Maximum Current Rating In Amps [AFRC]
- 3.0
- Contact Surface Treatment [AFRH]
- Gold
- Furnished Items And Quantity [TMQY]
- 4 Lock Washer And 2 Screw And 2 Stud
- Mounting Hole Diameter [ABTB]
- 0.125 Inches Nominal
- Mounting Hole Style [AEVB]
- Rectangular, W/Two Mounting Holes/Slots
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.009 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Below Mounting Surface [AKXC]
- 0.281 Inches Nominal
- Overall Height [ABKW]
- 0.562 Inches Nominal
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Overall Width [ABMK]
- 0.390 Inches Nominal
- Special Features [FEAT]
- Top Mtd
- Terminal Type And Quantity [TTQY]
- 9 Tab, Solder Lug
Weapon Systems (WSDC) 5935-00-931-4011
DLA Procurement Analysis 5935-00-931-4011
Management Data 5935-00-931-4011
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-931-4011
Freight Information 5935-00-931-4011
5935-00-931-4011 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-931-4011 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-931-4011 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-931-4011 is not classified as a special type of cargo when transported by water. 5935-00-931-4011 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
