5935-00-931-1829
Plug-In Electronic Components Socket
5935009311829 009311829 247ASC1814-001 7180129-1 61660-1 200AS112-1 7041-1 SC5935-0001-2 374753-1 8080-1G2 G124922-1 534429-1 GS806BK1 J30-0006-000 EM-C0017-002 000-8002-770 0931008P001 7902631-00 8080-1G3 80801 8038-1G13 7900149-00 S30487-1 701407 8080-1 7900149 5935PL0931912
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
Managed by United States
NSN Created on 12 Sep 1966
Data Last Changed
November 2023
November 2023
NATO Update Count
61
61
NATO Data Quality
Marketplace 5935-00-931-1829
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
8080-1G3 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
7902631-00 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 5 EA NS
8080-1G3 SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS
8080-1G2 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 4 EA NS
GS806-BK1 SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS
8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 2 EA NS
8080-1G3 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
7900149-00 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
7900149 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
200AS112-1 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 33 EA NS
7902631-00 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
247ASC1814-001 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS
Updated Every Day 5935-00-931-1829 RQST NE
Updated Every Day 5935-00-931-1829 RQST
Updated Every Day 5935-00-931-1829 RQST NE
Related Documents 5935-00-931-1829 5+ Documents (More...)
247ASC1814-001 7180129-1 61660-1 200AS112-1 7041-1 SC5935-0001-2 374753-1 G124922-1 534429-1 GS806BK1
J30-0006-000 EM-C0017-002 000-8002-770 7902631-00 0931008P001 8080-1 8080-1G2 8080-1G3 80801 8038-1G13
7900149 7900149-00 S30487-1 701407 5935PL0931912 An item designed to electrically connect and mechanically
J30-0006-000 EM-C0017-002 000-8002-770 7902631-00 0931008P001 8080-1 8080-1G2 8080-1G3 80801 8038-1G13
7900149 7900149-00 S30487-1 701407 5935PL0931912 An item designed to electrically connect and mechanically
SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request Quotation 8080-1G3 SOCKET,PLUG-IN ELECTRONIC
COMPONENTS 1 EA NS Request Quotation 7900149-00 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request
Quotation 8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 2 EA NS Request Quotation Subscribe to View
COMPONENTS 1 EA NS Request Quotation 7900149-00 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request
Quotation 8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 2 EA NS Request Quotation Subscribe to View
https//www.nsnlookup.com
/fsg-40/fsc-4030/au
/fsg-40/fsc-4030/au
4030-66-141-9606 Shackle 4030661419606 661419606,534429
https//www.nsnlookup.com /fsg-40/fsc-4030/au 4030 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-931-1829
Plug-In Electronic Components Socket Socket5935009311829 009311829 247ASC1814-001 7180129-1 61660
-1 200AS112-1 7041-1 SC5935-0001-2 374753-1 G124922-1 534429 COMPONENTS 2 EA NS Request Quotation Subscribe
Plug-In Electronic Components Socket Socket5935009311829 009311829 247ASC1814-001 7180129-1 61660
-1 200AS112-1 7041-1 SC5935-0001-2 374753-1 G124922-1 534429 COMPONENTS 2 EA NS Request Quotation Subscribe
your Account Upgrade 5961-01-703-2700Diode Semiconductor Device5961017032700 017032700 BAS19-7-F 701407
-1 701407 A two electrode semiconductor device having an asymmetrical voltage - current characteristic
Plug-In Electronic Components Socket 8002-770 7902631-00 0931008P001 8080-1 8080-1G2 8080-1G3 80801
-1 701407 A two electrode semiconductor device having an asymmetrical voltage - current characteristic
Plug-In Electronic Components Socket 8002-770 7902631-00 0931008P001 8080-1 8080-1G2 8080-1G3 80801
SOCKET,PLUG-IN ELECTRONIC COMPON 1 EA NS Request Quotation 7902631-00 SOCKET,PLUG-IN ELECTRONIC COMPON
1 EA NS Request Quotation Subscribe to View Vendor Details... 8080-1G3 SOCKET,PLUG-IN ELECTRONIC COMPON
SOCKET,PLUG-IN ELECTRONIC COMPON 1 EA NS Request Quotation 8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPON
1 EA NS Request Quotation Subscribe to View Vendor Details... 8080-1G3 SOCKET,PLUG-IN ELECTRONIC COMPON
SOCKET,PLUG-IN ELECTRONIC COMPON 1 EA NS Request Quotation 8038-1G13 SOCKET,PLUG-IN ELECTRONIC COMPON
Restrictions 5935-00-931-1829
5935-00-931-1829 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-931-1829
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-931-1829
- US Army (A918)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CLCT
- MOE Rule:
- BGX1
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- BTX1
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEJSJBHD
- Poland (WP01)
- Effective Date:
- 1 Jan 2006
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Nov 1999
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-931-1829
- Part Number
- Manufacturer
- Status
- 374753-1
- Manufacturer
- 00752 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
- 8080-1G2
- 91056 - White J J Products Inc (Active)
- Primary Buy
- Primary Buy
- 247ASC1814-001
- 30003 - Naval Air Systems Command Managed (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- G124922-1
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 534429-1
- 96214 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- GS806BK1
- 26512 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- J30-0006-000
- 14304 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- EM-C0017-002
- 33875 - Raytheon E-Systems, Inc (Active)
- Secondary Buy
- Secondary Buy
- 000-8002-770
- 94756 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- G124922-1
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 0931008P001
- 94117 - Bae Systems Information And (Active)
- Secondary Buy
- Secondary Buy
- 7902631-00
- 90536 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
- 8080-1G3
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 80801
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8038-1G13
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- G124922-1
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7900149-00
- 90536 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- S30487-1
- 99974 - Delco Electronics Corp Delco Systems (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 701407
- 62143 - Northern Telecom Inc Telecom (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8080-1
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8080-1G2
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7900149
- 90536 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5935PL0931912
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 61660-1
- 22525 - Instruments And Flight Research Inc. (Active)
- Vendor Drawing
- Vendor Drawing
- 7180129-1
- 10236 - Electrodynamics Inc (Active)
- Advisory Reference
- Advisory Reference
- 61660-1
- 00779 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
- 200AS112-1
- 30003 - Naval Air Systems Command Managed (Active)
- Advisory Reference
- Advisory Reference
- 7041-1
- 04953 - Edo Ail Systems Inc (Obsolete)
- Advisory Reference
- Advisory Reference
- SC5935-0001-2
- 12115 - Drs Icas, Llc (Replaced)
- Advisory Reference
- Advisory Reference

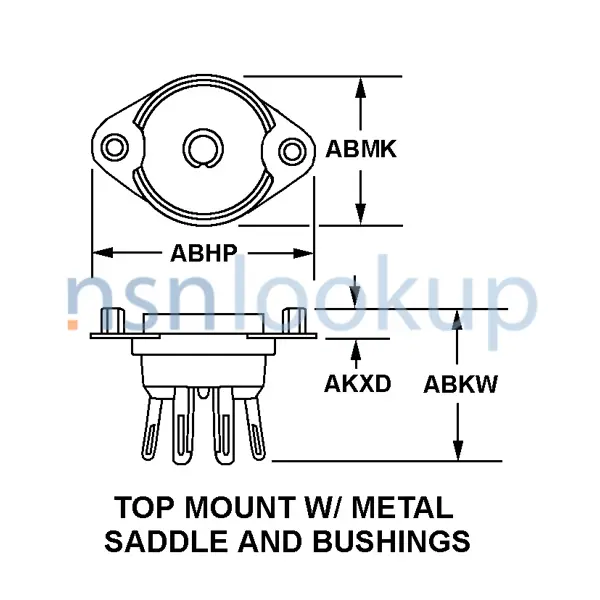

Datasheet 5935-00-931-1829
