5935-00-909-1485
Electrical Connector Backshell
5935009091485 009091485 G386-3
An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables.It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device.It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions. View more Electrical Connector Backshell
May 2023
11
Marketplace 5935-00-909-1485
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-909-1485 5+ Documents (More...)
Every Day 5935-00-909-1485 RQST Updated Every 5975660247299 660247299,G386-3 /fsg-59/fsc-5935/us 5935
-00-909-1485 Electrical Connector Backshell 5935009091485 Electrical Connector Backshell 5935009091485
/fsg-59/fsc-5975/au
,G386-3 Australia (AU) 4 . 5975-66 -66-024-7291 5975-66-024-7299 Pothead 5975660247299660247299,G386
Electrical Connector Backshell 5935009091485 Pothead 5975660247299660247299,G386-3 /fsg-59/fsc-
59/ Pothead 5975660247299660247299 Pothead 5975660247299660247299 https// 5975660247299660247299 ,G386-3
Electrical Connector Backshell 5935009091485 5975-66-024 ,G386-3 5975151573410 151573410 /fsg https
https//www.nsnlookup.com /fsg-59/fsc-5975/au 5975-66-024-7299 Pothead 5975660247299660247299,G386-3
151573410 /fsg-59/fsc 151573410 Day 5975-66-024-7299 https 660247299,G386-3 https//www.nsnlookup.com
5975151319361151319361 Pothead 5975123066663 https//www.nsnlookup.com 151573410 Day 5975-66-024-7299 https 660247299,G386-3
5975123066663 123066663,06600138 5975-15-131-9361 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-909-1485
Restrictions 5935-00-909-1485
5935-00-909-1485 is a Electrical Connector Backshell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-909-1485
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-909-1485
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-909-1485
- Part Number
- Manufacturer
- Status
- G386-3
- Manufacturer
- 06324 - Glenair, Inc. (Active)
- Original Design
- Original Design
Datasheet 5935-00-909-1485
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Quantity [AKRD]
- 1
- Cable Opening Diameter [AGTW]
- 0.188 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.125 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 1.312 Inches Nominal
- Material [MATT]
- Aluminum Alloy
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Size Designation [ALJP]
- 6
- Overall Height [ABKW]
- 4.360 Inches Nominal
- Overall Length [ABHP]
- 3.620 Inches Maximum
- Overall Width [ABMK]
- 1.812 Inches Maximum
- Special Features [FEAT]
- Mtg Hole Has Thd Nut Attached To Body For Mtg
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.141 Inches Nominal

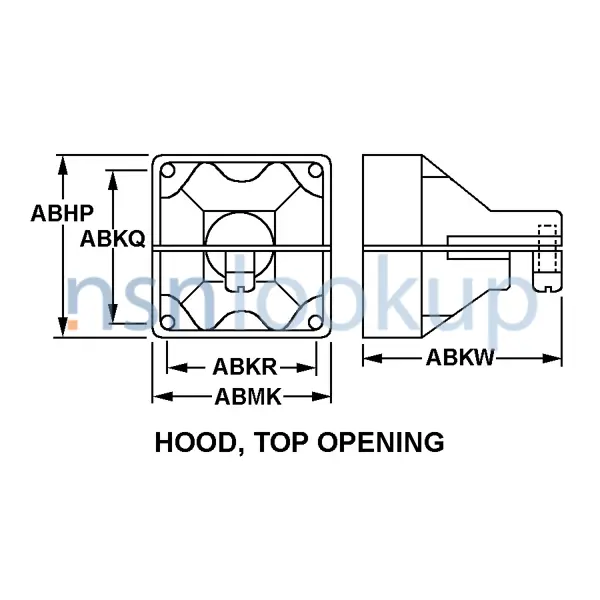

- Style Designator [STYL]
- Hood, Top Opening
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 32
DLA Procurement Analysis 5935-00-909-1485
Management Data 5935-00-909-1485
Similar Supply Items to 5935-00-909-1485
Freight Information 5935-00-909-1485
5935-00-909-1485 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-909-1485 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-909-1485 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-909-1485 is not classified as a special type of cargo when transported by water. 5935-00-909-1485 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-909-1485
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5935-00-909-1485 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
