5935-00-889-5138
Plug-In Electronic Components Socket
5935008895138 008895138 8058-1G46 189313-1 560911 3162594 A2220
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
13
Marketplace 5935-00-889-5138
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-889-5138 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-889-5138 (Identification) 2/3 NSN 5935-00-889-5138 (Identification
A2220 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 118 EA NS Request Quotation Updated Every Day 5935-00-889-
8058-1G46 189313-1 3162594 560911 https//www.nsnlookup.com /fsg-61/fsc-6140/de 6140-12-170 https//www.nsnlookup.com
Components Socket5935008895138 008895138 8058-1G46 189313-1 3162594 560911 Extreme Cold Weather Socks
00-889-5138Plug-In Electronic Components Socket5935008895138 008895138 8058-1G46 189313-1 3162594 560911
8058-1G46 189313-1 3162594 560911 Battery Box 6140121704596121704596 enable JavaScript in your web browser
8058-1G46 189313 11 TALLA Primary Buy RNCC 3 RNVC 2 DAC 3 560911 https//www.nsnlookup.com /fsg-29/fsc
00-889-5138Plug-In Electronic Components Socket5935008895138 008895138 8058-1G46 189313 3060005120 560911
Components Socket 00-889-5138Plug-In Electronic Components Socket5935008895138 008895138 8058-1G46 189313
-1 3162594 560911 Retainer 2915007162599 007162599,560911 Upgrade for $1 a day Upgrade your Account Upgrade
Restrictions 5935-00-889-5138
5935-00-889-5138 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-889-5138
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-889-5138
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5935-00-889-5138
- Part Number
- Manufacturer
- Status
- 8058-1G46
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- 8058-1G46
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- 189313-1
- 37695 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 560911
- 56232 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 3162594
- 10001 - Navair And Navsea Managed Original (Active)
- Secondary Buy
- Secondary Buy
- A2220
- 81535 - Aeronautical Communications (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-889-5138
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.370 Inches Minimum And 0.375 Inches Maximum
- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Beryllium Copper
- Contact Maximum Current Rating In Amps [AFRC]
- 1.0
- Contact Position Arrangement Style [CRPY]

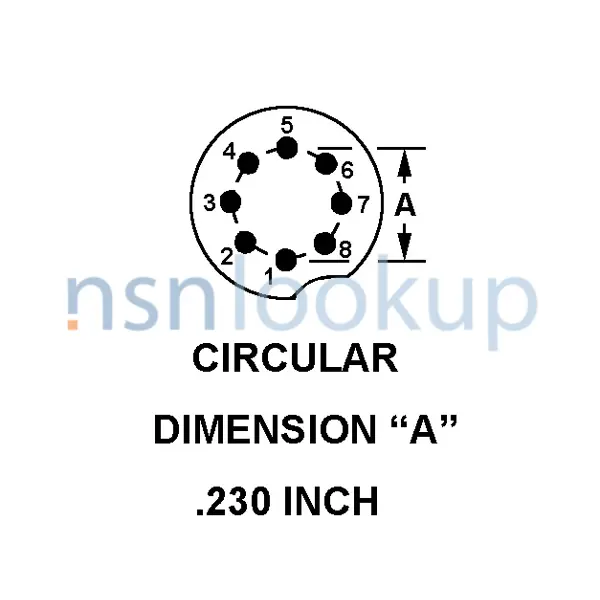

- Circular .230 Inch
