5935-00-880-4643
Plug-In Electronic Components Socket
5935008804643 008804643 239298 280028P1 T8047-1G2A 8047-1G2AT 8047-1G2A
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
10
Marketplace 5935-00-880-4643
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-880-4643 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-880-4643 (Identification) 2/3 NSN 5935-00-880-4643 (Identification
5935-00-880-4643 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-880-4643
T8047-1G2A An item designed to electrically connect and mechanically position the base of an item having
Plug-In Electronic Components Socket,239298 Upgrade 5935-00-880-4643Plug-In Electronic Components
Plug-In Electronic Components Socket,239298 Upgrade 5935-00-880-4643Plug-In Electronic Components
Socket5935008804643 008804643 239298 280028P1 s). for items without ports see cap (1), valve. https/
your web browser . 4810-99-559-0454Valve Head4810995590454 995590454 2E115681TEM5 2E11568-5 H606-239298
239298 MODEL 71 39298 MODEL 71 A spring consisting of a length of material wound on itself in the form
/fsg-48/fsc-4810/uk 4810-99-559-0454 Valve Head 4810995590454995590454 2E115681TEM52E11568-5H606-239298
4810995590454995590454 your web browser . 4810-99-559-0454Valve Head4810995590454 995590454 2E115681TEM52E11568-5H606-239298
Restrictions 5935-00-880-4643
5935-00-880-4643 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-880-4643
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-880-4643
- US Army (A918)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHXHD
- Canada (ZC01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5935-00-880-4643
- Part Number
- Manufacturer
- Status
- 8047-1G2A
- Manufacturer
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- 280028P1
- 94117 - Bae Systems Information And (Active)
- Secondary Buy
- Secondary Buy
- 239298
- 49671 - Lockheed Martin Corporation (Obsolete)
- Advisory Reference
- Advisory Reference
- 8047-1G2A
- 00779 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
- T8047-1G2A
- 00779 - Te Connectivity Corporation (Active)
- Transferred
- Transferred
- 8047-1G2AT
- 00779 - Te Connectivity Corporation (Active)
- Transferred
- Transferred
Datasheet 5935-00-880-4643
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic And Glass
- Body Style [AAQL]
- Rectangular
- Contact Material [AFRG]
- Phosphor Bronze

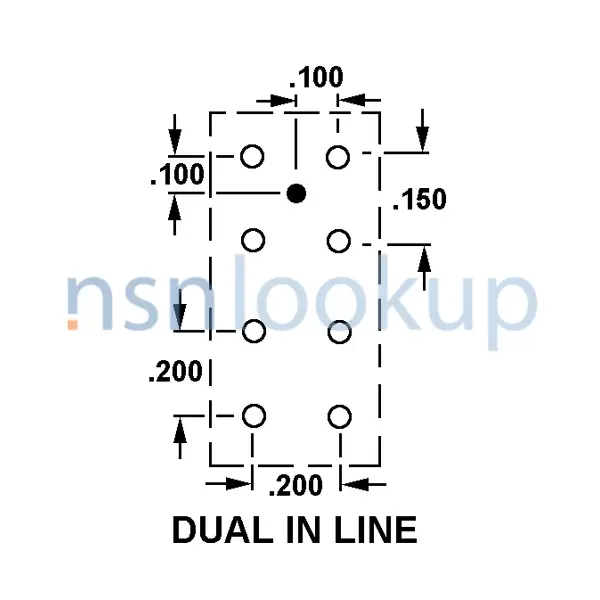

- Contact Position Arrangement Style [CRPY]
- Dual In Line
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 0.295 Inches Minimum And 0.305 Inches Maximum
- Fabrication Method [AARN]
- Molded
- Mounting Hole Diameter [ABTB]
- 0.088 Inches Minimum And 0.098 Inches Maximum
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Off Center Hole
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material [PRMT]
- Gold And Silver
- Overall Height [ABKW]
- 1.344 Inches Maximum
- Overall Length [ABHP]
- 0.921 Inches Maximum
- Overall Width [ABMK]
- 0.562 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Relay
- Temp Rating [ABJH]
- 135.0 Deg Celsius
- Terminal Inside Diameter [AXPX]
- 0.041 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 8 Solder Well
