5935-00-879-0468
Electrical Connector Retaining Plate
5935008790468 008790468 XMER20-0010 XMRE20-0010
A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE. View more Electrical Connector Retaining Plate
November 2023
9
Marketplace 5935-00-879-0468
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-879-0468 2+ Documents (More...)
XMRE20-0010 PLATE,RETAINING,ELECTRICAL CONNECTOR 7 EA NS Request Quotation Updated Every Day 5935-00-
879-0468 RQST NE Updated Every Day 5935-00-879-0468 RQST Updated Every Day 5935-00-879-0468 RQST NE Related
Related Documents 5935-00-856-0167 2+ Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-879-0468
Electrical Connector Retaining Plate Updated Every Day 5935-00-879-0468 RQST NE Related https//
Restrictions 5935-00-879-0468
5935-00-879-0468 is a Electrical Connector Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-879-0468
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-879-0468
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
Approved Sources 5935-00-879-0468
- Part Number
- Manufacturer
- Status
- XMRE20-0010
- Manufacturer
- 81312 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
- XMER20-0010
- 81312 - Winchester Interconnect Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-879-0468
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Distance Between Mounting Facility Centers [AEJN]
- 2.266 Inches Nominal
- Material [MATT]
- Aluminum
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole

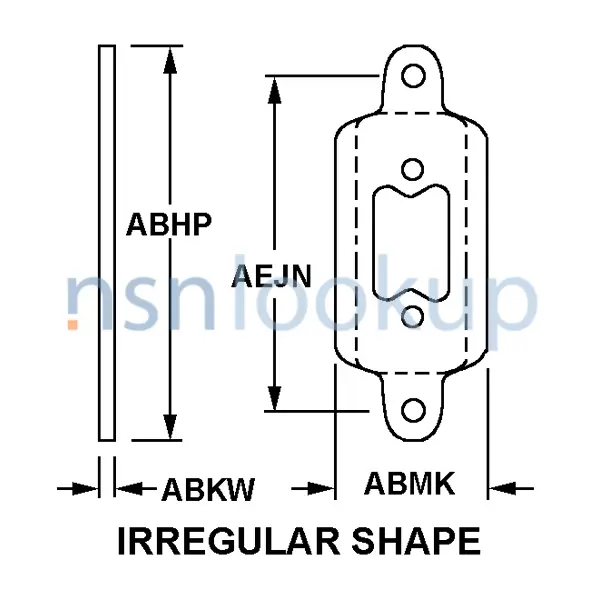

- Style Designator [STYL]
- Irregular Shape
- Size Designation [ALJP]
- 20
- Overall Height [ABKW]
- 0.040 Inches Nominal
- Overall Width [ABMK]
- 1.016 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.125 Inches Nominal
- Surface Treatment [SFTT]
- Anodize
Weapon Systems (WSDC) 5935-00-879-0468
DLA Procurement Analysis 5935-00-879-0468
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-00-879-0468
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-879-0468
Freight Information 5935-00-879-0468
5935-00-879-0468 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-879-0468 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-879-0468 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-879-0468 is not classified as a special type of cargo when transported by water. 5935-00-879-0468 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-879-0468
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 1.0" H x 0.1" W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 1.0" H x 0.1" W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1051, Paperboard Cushioning
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-879-0468 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
