5935-00-834-9901
Electrical Plug Connector
5935008349901 008349901 220HG MT120 99-0813-001
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
18
Marketplace 5935-00-834-9901
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-834-9901 5+ Documents (More...)
RQST NE Updated Every Day 5935-00-834-9901 RQST Updated Every Day 5935-00-834-9901 RQST NE Related Documents
5935-00-834-9901 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-834-9901
Documents 5935-01-076-1457 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-834-9901
Electrical Plug Connector 5935008349901 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-834-9901
7694 Circuit Breaker 5925995517694 995517694 5910-00-061-3206 Ceramic Dielectric Variable Capacitor,MT120
enable JavaScript in your web browser . 6630-12-360- 0644Chromatogra Filter6630123600644 123600644 MT120
/fsg-51/fsc-5120/us
$1 a day Upgrade your Account Upgrade 5120-01-654-9251Special Socket5120016549251 0165492512401877-MT120
Ceramic Dielectric Variable Capacitor,MT120 0644Chromatogra https//www.nsnlookup.com /fsg-59/fsc-5935
XTI-500-220HG Managed by United States NSN Created on 29 Sep 2011 Data Last Changed November 2023 NATO
AMC 5 AMSC Z IMC Z IMCACTY GH Approved Sources 1095-01-599-4887 Part NumberManufacturerStatusSEC-500-220HG
Restrictions 5935-00-834-9901
5935-00-834-9901 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-834-9901
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-834-9901
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-834-9901
- Part Number
- Manufacturer
- Status
- 220HG
- Manufacturer
- 27520 - Control Products Corporation (Active)
- Primary Buy
- Primary Buy
- MT120
- 33483 - T J Electronics Div Of (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 99-0813-001
- 93712 - Alliant Defense Electronics Systems (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-834-9901
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Contact Position Arrangement Style [AFQX]
- Nonstd Single Mating End
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Body Style [AAQL]
- Straight Shape
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 1 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Coaxial Pin Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Plastic Single Mating End
- Shell Surface Treatment [CSWM]
- Cadmium
- Shell Type [AFRT]
- Solid
- Shell Material [CSPT]
- Copper Alloy

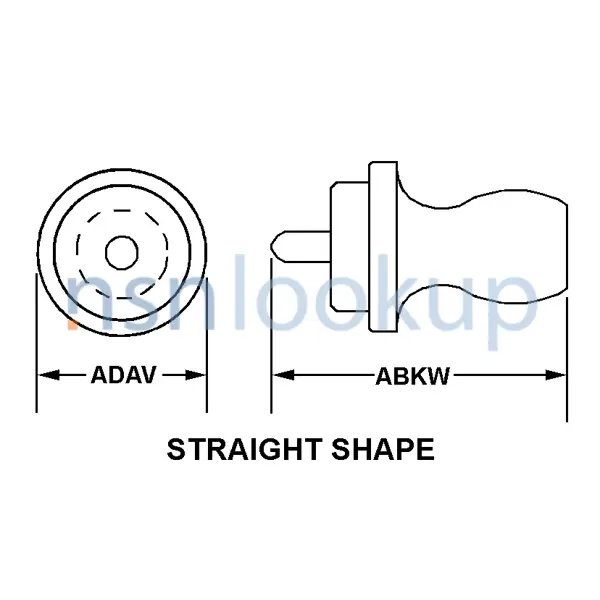

- Overall Diameter [ADAV]
- 0.406 Inches Nominal
- Overall Height [ABKW]
- 0.315 Inches Minimum And 0.320 Inches Maximum
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
Weapon Systems (WSDC) 5935-00-834-9901
DLA Procurement Analysis 5935-00-834-9901
Management Data 5935-00-834-9901
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-834-9901
Freight Information 5935-00-834-9901
5935-00-834-9901 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-834-9901 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-834-9901 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-834-9901 is not classified as a special type of cargo when transported by water. 5935-00-834-9901 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
