5935-00-831-9081

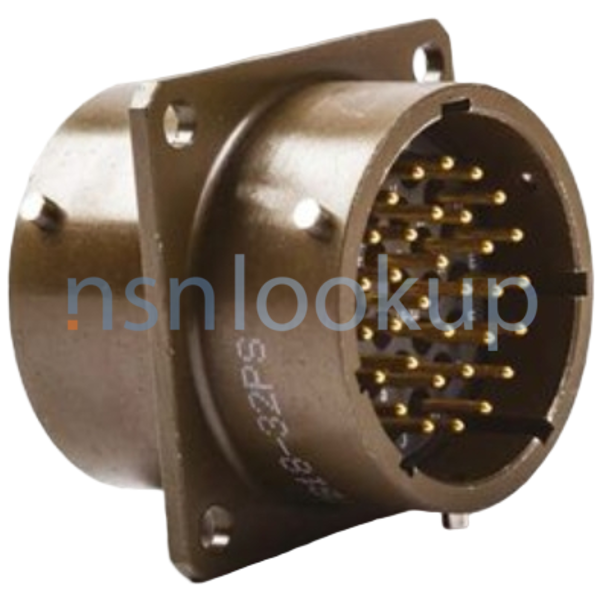

Connector Adapter
5935008319081 008319081 MIL-DTL-26482 MS3119E18-32X MIL-C-26482
An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction.It is not designed for permanent attachment to a cable, cord, coaxial line, or wire.The physical shape of an electrical connector should not be the determining factor of its name.Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR.Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER.For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT. View more Connector Adapter
August 2025
23
Marketplace 5935-00-831-9081
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-831-9081 5+ Documents (More...)
Updated Today MS3119E18-32X ADAPTER 3 EA NS Request Quotation Subscribe to View Vendor Details... 5935
MIL-C-26482 ADAPTER,CONNECTOR 4 EA NS Request Quotation Updated Every Day 5935-00-831-9081 RQST NE Updated
MILC26482 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS Request Quotation MIL-C-26482 CONNECTOR,RECEPTACLE,
An electrical fitting with electrical contacts constructed to be affixed MIL-C-26482 CONNECTOR,
Restrictions 5935-00-831-9081
5935-00-831-9081 is a Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-831-9081
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-831-9081
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Oct 1993
- France (ZF01)
- Effective Date:
- 1 Apr 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2010
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-831-9081
- Part Number
- Manufacturer
- Status
- MS3119E18-32X
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-26482
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-C-26482
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-831-9081
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.562 Inches Minimum And 0.593 Inches Maximum
- Body Style [AAQL]
- Straight Shape W/Flange
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.062 Inches Nominal
- Connector Locking Method [AFRV]
- Bayonet Pin
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 600.0 All Mating Ends All Contact Groupings
- Contact Removability [AFQZ]
- Nonremovable All Mating Ends All Contact Groupings
- Contact Position Arrangement Style [AFQX]
- 18-32 All Mating Ends
- Contact Surface Treatment [CQYH]
- Gold All Mating Ends All Contact Groupings And Copper All Mating Ends All Contact Groupings
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.062 Inches Nominal
- Environmental Protection [ADZC]
- Moisture Resistant And Salt Water Resistant And Vibration Resistant
- Mating End Quantity [AFQW]
- 2
- Included Contact Quantity [CXCG]
- 32 All Mating Ends Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin 1St Mating End All Contact Groupings
- Included Contact Type [CXCL]
- Round Socket 2Nd Mating End All Contact Groupings
- Insert Position In Deg [AFRP]
- 138.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.032 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Surface Treatment Document And Classification [CTBC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
- Shell Surface Treatment [CSWM]
- Cadmium
- Shell Type [AFRT]
- Solid
- Shell Material [CSPT]
- Aluminum Alloy
- Overall Height [ABKW]
- 1.328 Inches Maximum
- Overall Length [ABHP]
- 1.125 Inches Maximum
- Overall Width [ABMK]
- 1.328 Inches Maximum
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.115 Inches Minimum And 0.125 Inches Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-C-26482 Government Specification
- Test Data Document [TEST]
- 81349-Mil-C-26482 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Weapon Systems (WSDC) 5935-00-831-9081
DLA Procurement Analysis 5935-00-831-9081
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-00-831-9081
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-831-9081
Freight Information 5935-00-831-9081
5935-00-831-9081 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-831-9081 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-831-9081 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-831-9081 is not classified as a special type of cargo when transported by water. 5935-00-831-9081 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-831-9081
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-831-9081 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
