5935-00-830-6349
Plug-In Electronic Components Socket
5935008306349 008306349 VP2 989132 T-21112 282-1136G1 30055-1 0211-012-001-000
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
33
Marketplace 5935-00-830-6349
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-830-6349 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-830-6349 (Identification) 2/3 NSN 5935-00-830-6349 (Identification
to electrically connect and (Identification) 1/3 NSN 5935-00-830-6349 (Identification) 2/3 NSN 5935-
T21112 SOCKET,PLUG-IN ELECTRONIC COMPON 12 EA NS Request Quotation Subscribe to View Vendor Details... 30055-1
View Vendor Details... 300551 us 5935-00-372-1232 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-830-6349
/fsg-83/fsc-8340/us
Updated Every Day 8340-01-450-3147 RQST NE Updated Every Day 8340-01-450-3147 RQST 42600C-VP2 https/
https//www.nsnlookup.com /fsg-59/fsc-5935/uk 5935-99-625-0778 Plug-In Electronic Components Socket,VP2
500 SPZ VP2 SPZ00500 TEXROPEVP2-500SPZ SPZ500 VP2-500SPZ TEXROPE VP2 SPZ00500 91701138 Managed by France
0668 VP2-SPZ630 TEXROPE VP2 SPZ00630 VP2 SPZ00630 Managed by France NSN Created on 29 Jan 500 SPZ VP2
630 SPZ 5988-0668 VP2-SPZ630 TEXROPE VP2 SPZ00630 VP2 SPZ00630 Managed by France NSN Created on 29 Jan
630 SPZ5988-0668VP2-SPZ630TEXROPE VP2 SPZ00630VP2 SPZ00630 Managed by France NSN Created 3030-14-485
Restrictions 5935-00-830-6349
5935-00-830-6349 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-830-6349
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-830-6349
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHD
- MOE Rule:
- S911
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- S007
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-830-6349
- Part Number
- Manufacturer
- Status
- T-21112
- Manufacturer
- 02288 - Allied Controls, Inc. (Active)
- Primary Buy
- Primary Buy
- 282-1136G1
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 282-1136G1
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 282-1136G1
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 30055-1
- 02288 - Allied Controls, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0211-012-001-000
- 02288 - Allied Controls, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- VP2
- 1E9M5 - C P Clare Corporation (Active)
- Advisory Reference
- Advisory Reference
- 989132
- 58634 - Saga Engineering Corp (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-830-6349
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 10
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount
- Contact Material [AFRG]
- Beryllium Copper

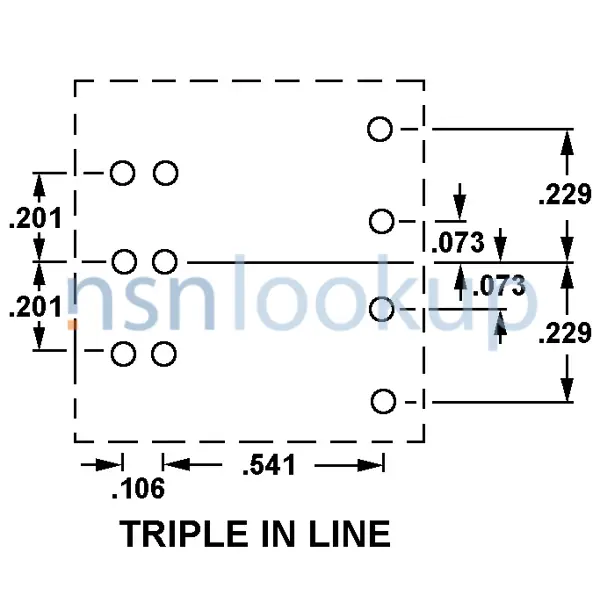

- Contact Position Arrangement Style [CRPY]
- Triple In Line
- Contact Surface Treatment [AFRH]
- Gold And Nickel
- Distance Between Mounting Facility Centers [AEJN]
- 0.354 Inches Nominal
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Component Retaining Device
- Mounting Hole Diameter [ABTB]
- 0.109 Inches Nominal
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.010 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Overall Height [ABKW]
- 0.542 Inches Nominal
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Overall Width [ABMK]
- 0.735 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Relay
- Terminal Length [ABJT]
- 0.175 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 10 Tab, Solder Lug
