5935-00-812-3742
Plug-In Electronic Components Socket
5935008123742 008123742 252939 115363 1988122 767228A
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
18
Marketplace 5935-00-812-3742
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-812-3742 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-812-3742 (Identification) 2/3 NSN 5935-00-812-3742 (Identification
5935-00-812-3742 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-812-3742
your Account Upgrade 5935-00-812-3742Plug-In Electronic Components Socket5935008123742 008123742 252939
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-812-3742 Plug-In Electronic Components Socket,252939
252939 An item designed to electrically connect and mechanically position the base of an item having
Components Socket5935008123742 008123742 252939 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00
www.nsnlookup.com /fsg-25/fsc-2590/de 2590-12-393-0385 Vehicular Components Bracket 2590123930385 115363
how to enable JavaScript in your web browser . 5330-14-304-8859Gasket Set5330143048859 143048859 115363
/www.nsnlookup.com /fsg-53/fsc-5330/fr 5330-14-304-8859 Gasket Set 5330143048859 143048859,115363 115363
www.nsnlookup.com /fsg-25/fsc-2590/de 2590-12-393-0385 Vehicular Components Bracket 2590123930385 115363
Restrictions 5935-00-812-3742
5935-00-812-3742 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-812-3742
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-812-3742
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5935-00-812-3742
- Part Number
- Manufacturer
- Status
- 252939
- Manufacturer
- 56236 - Sperry John H Co (Obsolete)
- Primary Buy
- Primary Buy
- 115363
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Primary Buy
- Primary Buy
- 1988122
- 10001 - Navair And Navsea Managed Original (Active)
- Secondary Buy
- Secondary Buy
- 767228A
- 56236 - Sperry John H Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-812-3742
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Octal .687 Inch
- Accommodated Contact Quantity [AFRL]
- 8
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Silver
- Body Style [AAQL]
- Top Or Bottom Mount W/Metal Saddle
- Overall Length [ABHP]
- 1.875 Inches Nominal
- Overall Height [ABKW]
- 0.810 Inches Nominal
- Overall Width [ABMK]
- 1.375 Inches Maximum
- Projection Length Below Mounting Surface [AKXC]
- 0.625 Inches Nominal
- Body Material [AAFZ]
- Ceramic
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Saddle

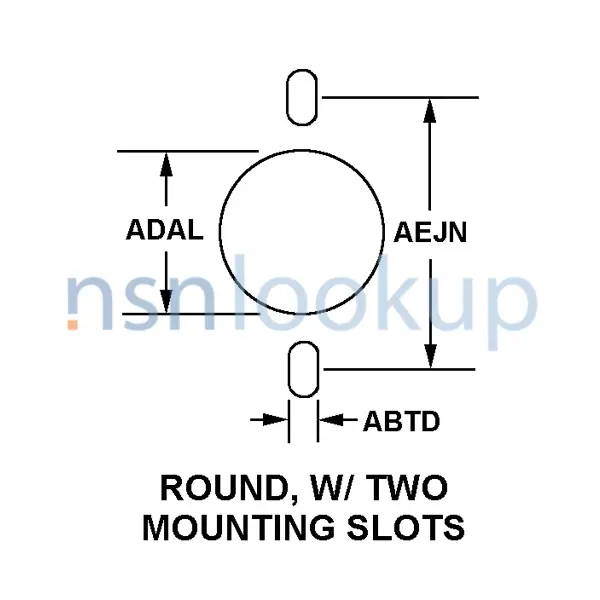

- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Slots
- Mounting Slot Width [ABTD]
- 0.156 Inches Nominal
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.500 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 1.125 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.008 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
Similar Supply Items to 5935-00-812-3742
Freight Information 5935-00-812-3742
5935-00-812-3742 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-812-3742 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-812-3742 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-812-3742 is not classified as a special type of cargo when transported by water. 5935-00-812-3742 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-812-3742
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
