5935-00-791-5337
Electrical Connector Shell
5935007915337 007915337 369A4591-5 H19C C38C
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
January 2023
8
Marketplace 5935-00-791-5337
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-791-5337 5+ Documents (More...)
H19C SHELL,ELECTRICAL CONNECTOR 13 EA NS Request Quotation Updated Every Day 5935-00-791-5337 RQST NE
Every Day 5935-00-791-5337 RQST NE Updated Every Day 5935-00-791-5337 RQST Updated Every Day 5935-00
www.nsnlookup.com /fsg-59/fsc-5935/uk 5935-99-999-7920 Electrical Connector Backshell 5935999997920 Quotation H19C-TYPE34
Updated Every Day 7643-14-567-9979 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-791-5337 Electrical
Account Upgrade 5935-01-030-6985Electrical Plug Connector5935010306985 010306985 XD100-13B C7-18P-VS/C38C
Electrical Connector Shell 5935007915337 Account Upgrade 5935-00-791-5337Electrical Connector Shell5935007915337
Connector Shell 5935007915337 H19C SHELL,ELECTRICAL CONNECTOR 426 EA NS Request Quotation Subscribe
BACKSHELL,ELECTRICAL CONNECTOR 6 EA NS Request Quotation H19C-TYPE34 BACKSHELL,ELECTRICAL CONNECTOR
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-791-5337 Electrical Connector Shell 5935007915337
H19C-TYPE34 BACKSHELL,ELECTRICAL CONNECTOR H19C BACKSHELL,ELECTRICAL CONNECTOR 6 EA NS Request Quotation
Restrictions 5935-00-791-5337
5935-00-791-5337 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-791-5337
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-791-5337
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-791-5337
- Part Number
- Manufacturer
- Status
- 369A4591-5
- Manufacturer
- 8V613 - The Boeing Company (Active)
- Source Control
- Source Control
- H19C
- 81312 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
- C38C
- 95238 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
- 369A4591-5
- 02731 - Mcdonnell Douglas Helicopter Co Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-791-5337
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Diameter [AGTW]
- 0.300 Inches Nominal
- Cable Opening Quantity [AKRD]
- 1
- Material [MATT]
- Plastic Melamine
- Mounting Facility Type And Quantity [AXHR]
- 1 Clamp Assembly And 1 Threaded Coupling
- Nominal Thread Size [CQJX]
- 0.500 Inches

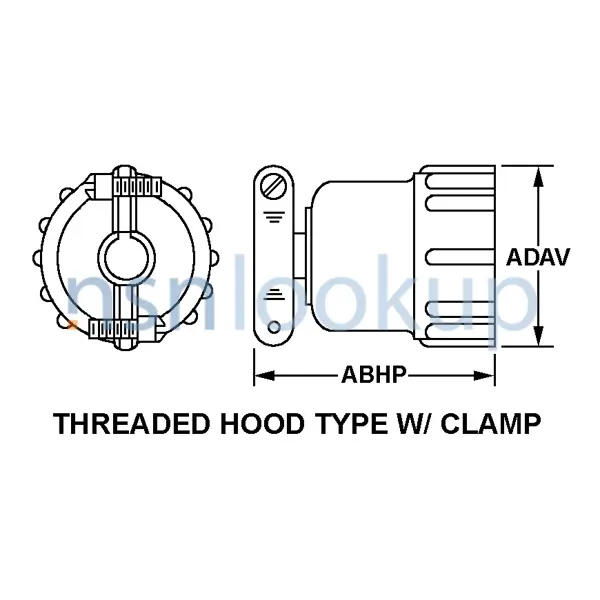

- Style Designator [STYL]
- Threaded Hood Type W/Clamp
- Overall Diameter [ADAV]
- 0.660 Inches Maximum
- Overall Length [ABHP]
- 0.970 Inches Maximum
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.300 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Left-Hand
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 20
DLA Procurement Analysis 5935-00-791-5337
Management Data 5935-00-791-5337
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2007
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5935-00-258-1757
- Z
Similar Supply Items to 5935-00-791-5337
Freight Information 5935-00-791-5337
5935-00-791-5337 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-791-5337 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5935-00-791-5337 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-791-5337 is not classified as a special type of cargo when transported by water. 5935-00-791-5337 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-791-5337
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
