5935-00-789-1752
Plug-In Electronic Components Socket
5935007891752 007891752 2796J HRJA35M 4SLRP A205-751-1
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
5
Marketplace 5935-00-789-1752
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-789-1752 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-789-1752 (Identification) 2/3 NSN 5935-00-789-1752 (Identification
RQST NE Updated Every Day 5935-00-789-1752 RQST Updated Every Day 5935-00-789-1752 RQST NE Related
Related Documents 5945-00-247-9377 2+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-789-1752
Plug-In Electronic Components Socket,2796J Every Day 5935-00-789-1752 RQST NE Related https https
Related Documents 5945-01-097-3492 3+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-789-1752
Plug-In Electronic Components Socket,2796J Updated Every Day 5935-00-789-1752 RQST NE Related https
HG4SLRP2233 RELAY,ELECTROMAGNETIC 40 EA NS Request Quotation Subscribe to View Vendor Details... 4SLRP
www.nsnlookup.com /fsg-59/fsc-5945/us 5945-00-910-4540 Electromagnetic Relay 5945009104540009104540 4SLRP
-2208 RELAY,ELECTROMAGNETIC 2299 EA NS Request Quotation Subscribe to View Vendor Details... 4SLRP-2208
... 4SLRP2208 RELAY,ELECTROMAGNETIC 20 EA NS Request Quotation Subscribe to View Vendor Details... 4SLRP
Restrictions 5935-00-789-1752
5935-00-789-1752 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-789-1752
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-789-1752
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDJF
Approved Sources 5935-00-789-1752
- Part Number
- Manufacturer
- Status
- 2796J
- Manufacturer
- 91663 - Armel De Llc (Active)
- Original Design
- Original Design
- HRJA35M
- 91663 - Armel De Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4SLRP
- 02289 - Hi-G Co Inc Sub Of Nytronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A205-751-1
- 02289 - Hi-G Co Inc Sub Of Nytronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-789-1752
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.063 Inches Minimum And 1.073 Inches Maximum
- Body Style [AAQL]

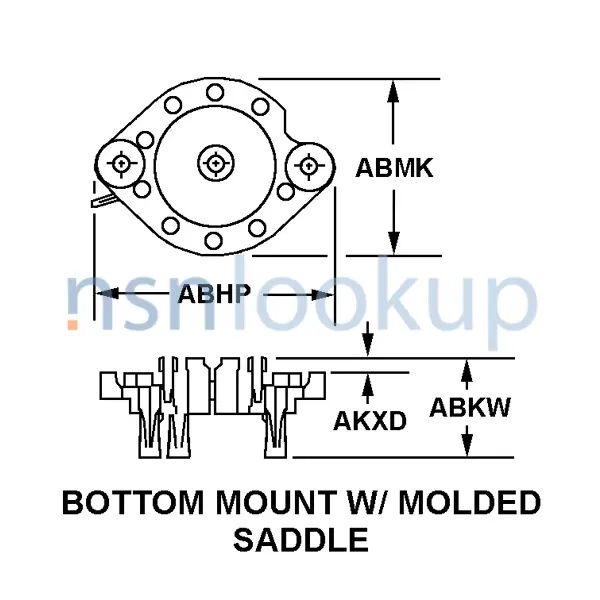

- Bottom Mount W/Molded Saddle
- Contact Material [AFRG]
- Beryllium Copper
- Contact Position Arrangement Style [CRPY]

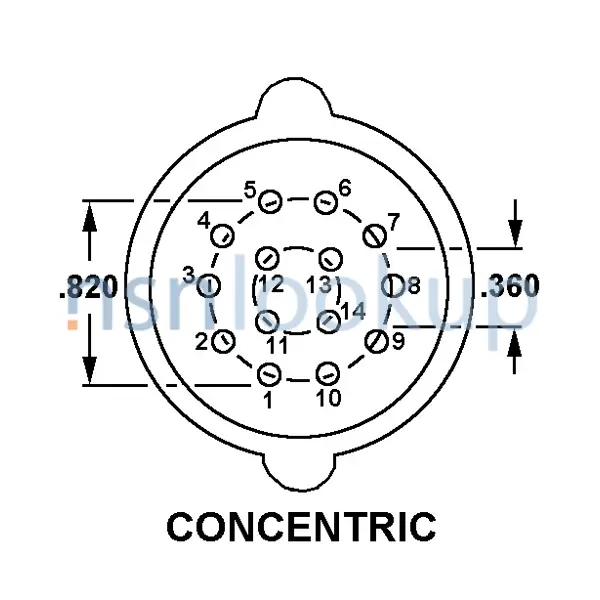

- Concentric
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.432 Inches Minimum And 1.442 Inches Maximum
- Mounting Hole Diameter [ABTB]
- 0.164 Inches Minimum
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.164 Inches
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy And 0.014 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Projection Length Above Mounting Surface [AKXD]
- 0.094 Inches Nominal
- Overall Height [ABKW]
- 1.109 Inches Minimum And 1.141 Inches Maximum
- Overall Length [ABHP]
- 1.765 Inches Minimum And 1.797 Inches Maximum
- Overall Width [ABMK]
- 1.140 Inches Minimum And 1.172 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 32
