5935-00-782-1803
Plug-In Electronic Components Socket
5935007821803 007821803 14090-022 282-1131P1 7620942P3 8009-1G3 X8015-1G16A 8009-1G18
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
35
Marketplace 5935-00-782-1803
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-782-1803 3+ Documents (More...)
RQST NE Updated Every Day 5935-00-782-1803 RQST Updated Every Day 5935-00-782-1803 RQST NE Related
Documents 5935-00-782-1803 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
7620942P3 282-1131P1 An item designed to electrically connect and mechanically position the base
14090-022 282-1131P1 7620942P38009-1G3 X8015-1G16A 8009-1G18 An item designed to electrically connect
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IZDiscontinued-Use 5935-00-782-1803
Restrictions 5935-00-782-1803
5935-00-782-1803 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-782-1803
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-782-1803
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BD
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHXHD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jan 2009
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Aug 1994
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-782-1803
- Part Number
- Manufacturer
- Status
- 14090-022
- Manufacturer
- 12763 - Dynalec Corporation (Active)
- Primary Buy
- Primary Buy
- X8015-1G16A
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- 8009-1G18
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 282-1131P1
- 49956 - Raytheon Company (Active)
- Transferred
- Transferred
- 7620942P3
- 03538 - Lockheed Martin Corporation (Active)
- Transferred
- Transferred
- 282-1131P1
- 3B150 - Raytheon Company (Active)
- Transferred
- Transferred
- 8009-1G3
- 00779 - Te Connectivity Corporation (Active)
- Transferred
- Transferred
Datasheet 5935-00-782-1803
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.812 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.465 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.062 Inches Nominal
- Contact Material [AFRG]
- Copper Alloy
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Component Retaining Device
- Mounting Hole Diameter [ABTB]
- 0.093 Inches Nominal
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Hole Style [AEVB]

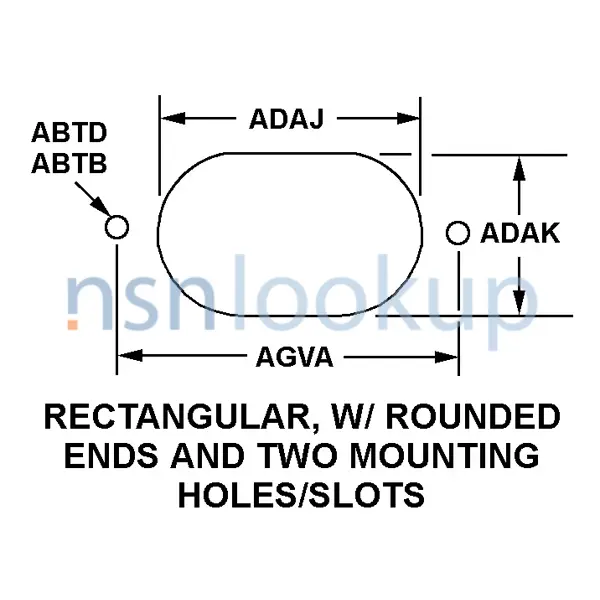

- Rectangular, W/Rounded Ends And Two Moun Ting Holes/Slots
- Mounting Type For Which Designed [BCNX]
- Chassis
- Specific Equipment Accommodated [AFJE]
- Relay
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
