5935-00-779-8394
Plug-In Electronic Components Socket
5935007798394 007798394 SO-1009-4487
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
6
Marketplace 5935-00-779-8394
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-779-8394 1+ Documents (More...)
SO-1009-4487 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 5 EA NS Request Quotation Updated Every Day 5935-00
-779-8394 RQST NE Updated Every Day 5935-00-779-8394 RQST Updated Every Day 5935-00-779-8394 RQST NE
Restrictions 5935-00-779-8394
5935-00-779-8394 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-779-8394
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-779-8394
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-779-8394
- Part Number
- Manufacturer
- Status
- SO-1009-4487
- Manufacturer
- 58657 - Leach International Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-779-8394
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

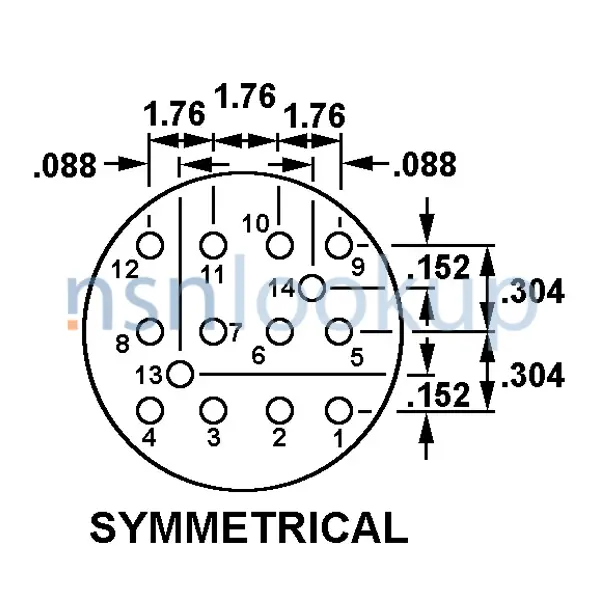

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Accommodated Contact Quantity [AFRL]
- 14
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0
- Contact Material [AFRG]
- Copper
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Or Bottom Mount W/Molded Saddle And Bushing
- Overall Length [ABHP]
- 2.281 Inches Nominal
- Overall Height [ABKW]
- 0.624 Inches Nominal
- Overall Width [ABMK]
- 1.531 Inches Nominal
- Projection Length Above Mounting Surface [AKXD]
- 0.093 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 14 Solder Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Round, W/Three Mounting Holes/Slots
- Mounting Hole Diameter [ABTB]
- 0.406 Inches Nominal
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.331 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.844 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.750 Inches Nominal
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
