5935-00-772-8192
Plug-In Electronic Components Socket
5935007728192 007728192 SDC120 SDC120W
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
4
Marketplace 5935-00-772-8192
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-772-8192 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-00-772-8192 RQST NE Updated Every Day 5935-00-772-8192 RQST
Updated Every Day 5935-00-772-8192 RQST NE Related Documents 5935-00-772-8192 1+ Documents ( More...
Restrictions 5935-00-772-8192
5935-00-772-8192 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-772-8192
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-772-8192
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5935-00-772-8192
- Part Number
- Manufacturer
- Status
- SDC120W
- Manufacturer
- 98095 - Power Designs Inc (Active)
- Primary Buy
- Primary Buy
- SDC120
- 98095 - Power Designs Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-772-8192
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

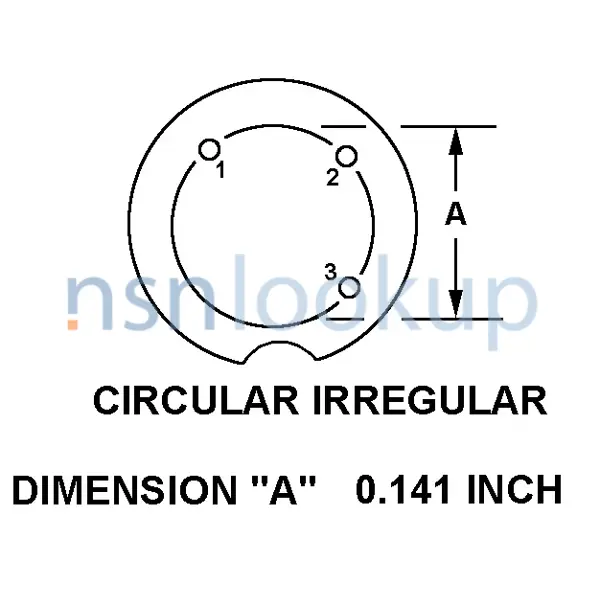

- Contact Position Arrangement Style [CRPY]
- Circular Irregular 0.141 Inch
- Accommodated Contact Quantity [AFRL]
- 3
- Missing Contact Designation [AKWF]
- All Contact Positions
- Body Style [AAQL]
- Cylindrical
- Overall Length [ABHP]
- 0.094 Inches Nominal
- Overall Diameter [ADAV]
- 0.344 Inches Nominal
- Body Material [AAFZ]
- Plastic
